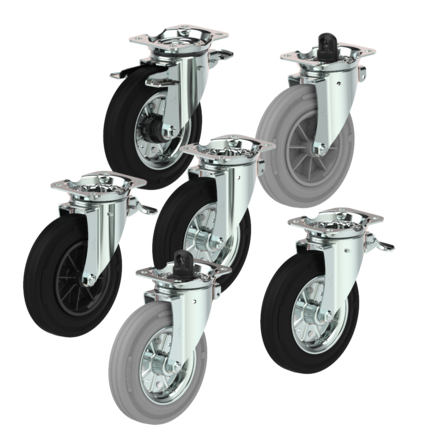

Castors for 4-wheel waste containers, 160 and 200 mm
Swivel castors for 660, 770 and 1100 litre waste containers (wheelie bins): 160 mm for 200 kg and 200 mm for 250 kg per castor, with total lock, central brake or no brake, rubber tyre on a steel rim or PP centre. Made in Postojna, Slovenia. Read more
-
ID 44345
Waste container swivel castor with central brake 200 mm, 250 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44339
Waste container swivel castor with central brake 160 mm, 200 kg
Bearing: plain bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 49314
Waste container swivel castor 200 mm, black rubber, 250 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 45245
Waste container wheel 200 mm, rubber, axle hole 22 mm, 160 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 160 kg
- Axle bore Ø: 22 mm
-
ID 47121
Waste container swivel castor with total lock 200 mm, 350 kg
Bearing: roller bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 350 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44791
Waste container swivel castor 200 mm, black rubber, 250 kg
Bearing: roller bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44761
Waste container swivel castor 200 mm, black rubber, 250 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44762
Waste container swivel castor with total lock 200 mm, 250 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44340
Waste container swivel castor with central brake 160 mm, 200 kg
Bearing: plain bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 44780
Waste container swivel castor 160 mm, black rubber, 200 kg
Bearing: roller bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 44763
Waste container swivel castor with central brake 200 mm, 250 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44790
Waste container swivel castor 200 mm, black rubber, 250 kg
Bearing: roller bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44338
Waste container swivel castor with total lock 160 mm, 200 kg
Bearing: plain bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 44787
Waste container swivel castor with total lock 160 mm, 200 kg
Bearing: roller bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 44336
Waste container swivel castor 160 mm, black rubber, 200 kg
Bearing: plain bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 44788
Waste container swivel castor with central brake 160 mm, 200 kg
Bearing: roller bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 44794
Waste container swivel castor with central brake 200 mm, 250 kg
Bearing: roller bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44795
Waste container swivel castor with central brake 200 mm, 250 kg
Bearing: roller bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44792
Waste container swivel castor with total lock 200 mm, 250 kg
Bearing: roller bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44786
Waste container swivel castor 160 mm, black rubber, 200 kg
Bearing: roller bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 44789
Waste container swivel castor with central brake 160 mm, 200 kg
Bearing: roller bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 47120
Waste container swivel castor 200 mm, black rubber, 350 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 350 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
-
ID 44781
Waste container swivel castor with total lock 160 mm, 200 kg
Bearing: roller bearing - Wheel diameter: 160 mm
- Wheel width: 40 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 200 mm
- Top plate size: 135x
108 mm
-
ID 49315
Waste container swivel castor with total lock 200 mm, 250 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 240 mm
- Top plate size: 135x
108 mm
Made by LIV
- Pressed, zinc plated and assembled in one plant in Slovenia.
- Zinc plated and passivated Cr6+-free on our own line, 10 to 15 µm.
- Automatic lines press the housings and assemble the castors.
How we make castors for container manufacturers (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
Find the right castor
A few questions, and the catalogue shows the castors and wheels that fit.
Which castor fits a 1100 litre waste container?
A 4-wheel container of 660 to 1100 litres runs on two swivel castors with brake and two without, or on central brake castors operated from one pedal. The 160 mm castor carries 200 kg per castor at 4 km/h and is the standard on 660 and 770 litre bins; the 200 mm castor carries 250 kg and is the choice for 1100 litre bins that are filled to their 440 kg rated load or that cross kerbs and cobbles daily. Both mount on the 135 x 108 mm top plate with 105 x 80 mm hole spacing and 11 mm bolt holes that container chassis use.
Steel rim or polypropylene centre
All castors on this page run an 80 Shore A black rubber tyre, quiet on asphalt and with grip on wet ramps, from -20 to +70 °C. The tyre sits on a zinc-plated steel rim or on an injection-moulded polypropylene centre. The steel rim takes the lift arm of the collection vehicle and road salt; the polypropylene centre saves about half a kilogram per castor and does not corrode. Plain bearings are standard because the castors stand outside and are pushed by hand; roller bearings are the choice where containers are towed in trains.
What EN 840-5 and RAL-GZ 951/1 require of the castors
EN 840-5 tests the complete container, not the castor alone: filled to 0.4 kg per litre (440 kg for 1100 L) it is driven into a 140 mm kerb at 1.85 m/s eight times, followed by brake and wheel tests. RAL-GZ 951/1, the German quality mark, adds kerb drop and roll tests, a brake test and a wheel run-out check, and limits the noise to 99 dB(A). The castor rating itself comes from EN 12532: load at 4 km/h on a test bench with obstacles of up to 5 % of the wheel diameter. Larger kerbs are usually no problem in daily use, but they lower the dynamic load capacity, which is why 1100 litre bins get the 200 mm wheel. Test references for the container model you build are available on request.
How to identify a replacement castor
Measure the wheel diameter and width, the plate length and width, the distance between the bolt holes in both directions, and note whether the castor has a pedal (total lock), a lever connection to the chassis (central brake) or no brake. With those six figures we match the castor; if the plate pattern differs from 105 x 80 mm, send us a photo of the chassis and we check the fit.
