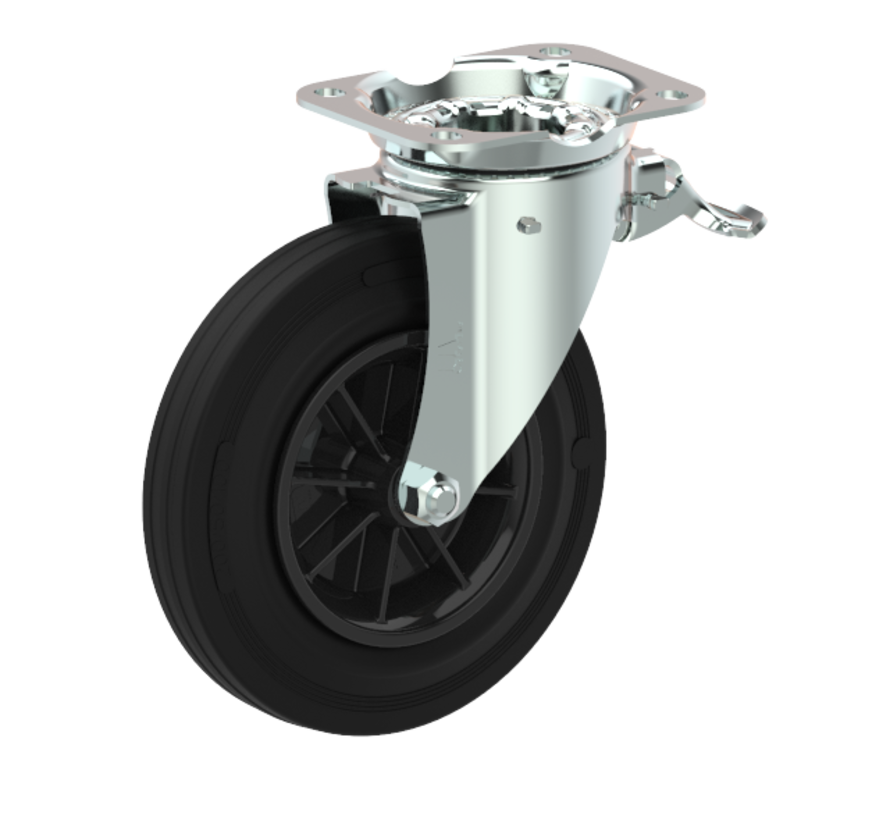

waste bin castors Swivel castor with brake + black rubber tyre Ø160 x W40mm for 200kg Prod ID: 44338

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

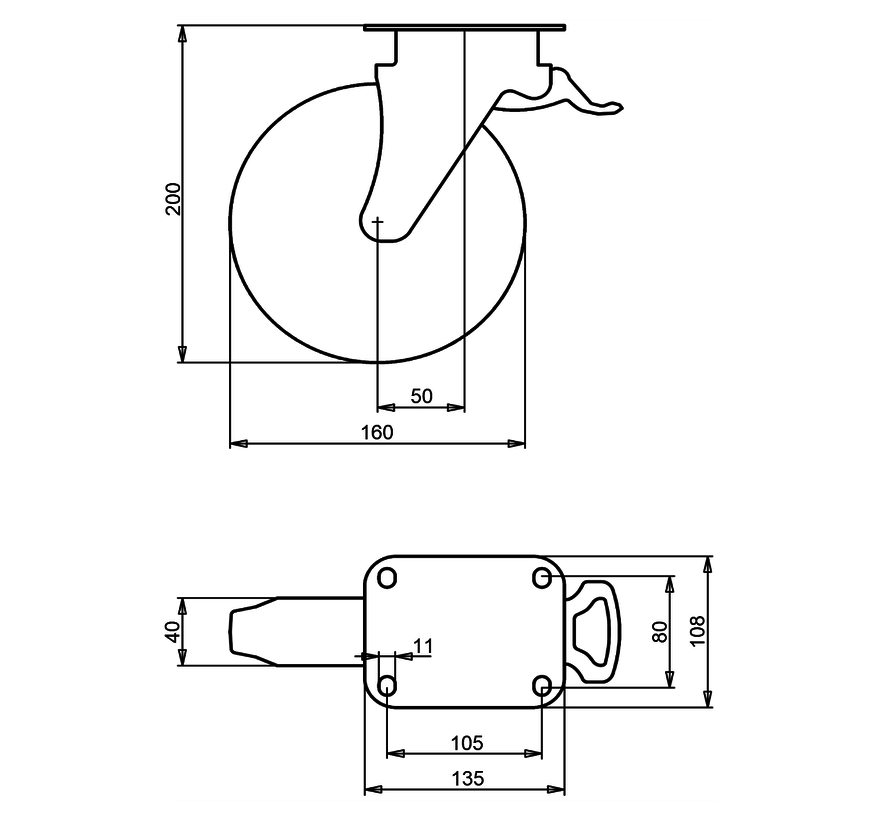

waste bin castors Swivel castor with brake with an overall height of 200 mm
Wheel diameter x width: 160 x 40 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x108 mm
Wheel with plain bearing and black rubber tyre with hardness 80 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Container stand and roll Swivel castor with brake:
✓ and humid surroundings
✓ throuhg the obstacles
✓ handling

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS waste bin castors Swivel castor with brake + black rubber tyre Ø160 x W40mm for 200kg Prod ID: 44338

ID 44338: Castor overall height 200 mm | 4 mounting holes with distance 105x80 mm | Wheel with plain bearing and black rubber tyre with hardness 80 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Container s
