waste bin castors Swivel castor + black rubber tyre Ø200 x W50mm for 250kg Prod ID: 44791

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

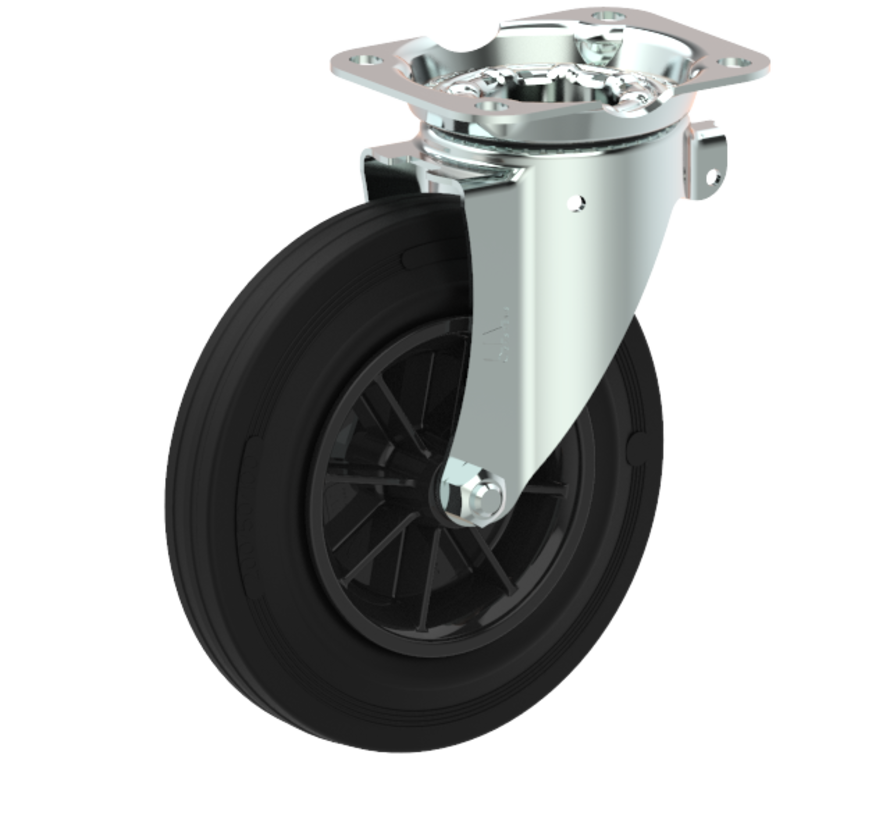

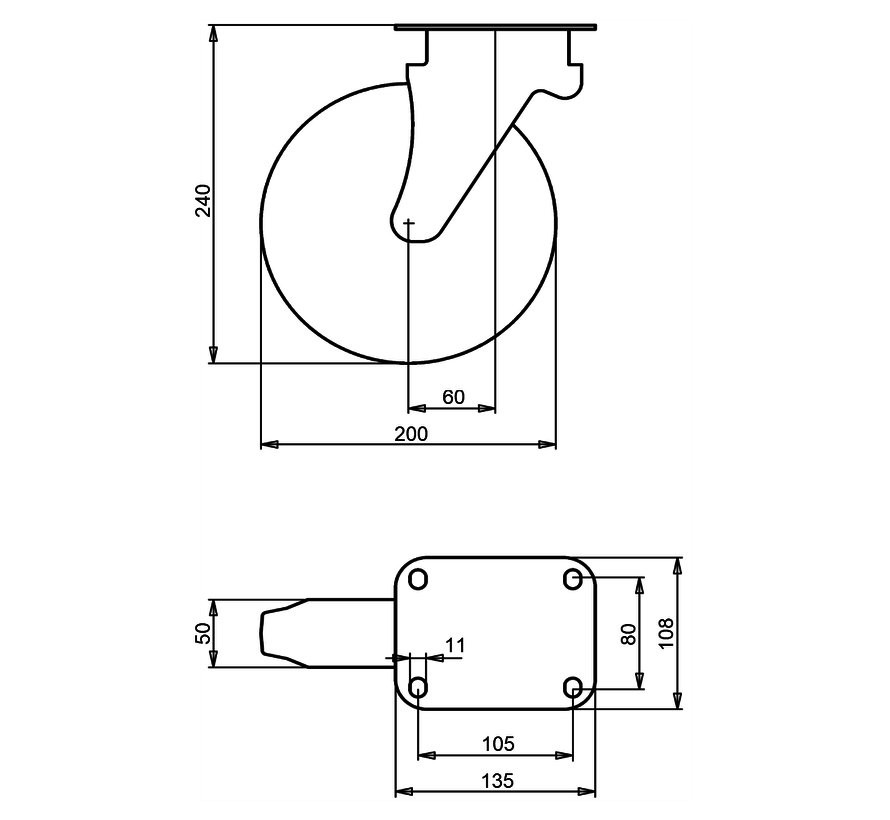

waste bin castors Swivel castor with an overall height of 240 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x108 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 250 kg
Static 310 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Container stand and roll Swivel castor:
✓ and humid surroundings
✓ throuhg the obstacles
✓ handling

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS waste bin castors Swivel castor + black rubber tyre Ø200 x W50mm for 250kg Prod ID: 44791

ID 44791: Castor overall height 240 mm | 4 mounting holes with distance 105x80 mm | Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A | Container stand and roll, wet and humid surroundings, get throuhg the obstacles, easy handling
