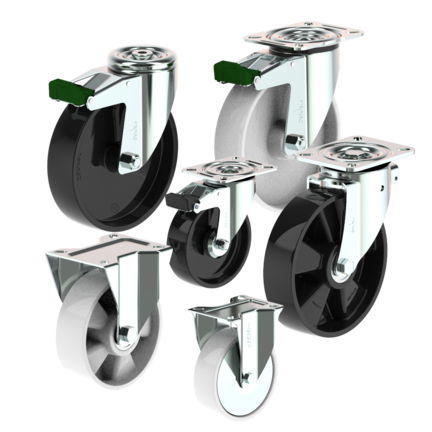

Polyamide (PA6) wheels and castors, 80 to 200 mm
Polyamide (PA6) wheels and castors from 80 to 200 mm diameter. Hard-wearing and rust-free, for retail, industry and healthcare. Plate, back-hole or hub fitting. Made in Postojna, Slovenia. Read more
-
ID 31793
Heavy duty swivel castor 200 mm, polyamide, plate 140x110 mm, 500 kg
Bearing: ball bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 500 kg
- Total height: 240 mm
- Top plate size: 140x
110 mm
-
ID 42893
Swivel castor with total lock 100 mm, polyamide, ball bearing, 200 kg
Bearing: ball bearing - Wheel diameter: 100 mm
- Wheel width: 35 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 128 mm
-
ID 42775
Wheel 125 mm, polyamide, ball bearing, axle hole 8.5 mm, 250 kg
Bearing: ball bearing - Wheel diameter: 125 mm
- Wheel width: 38 mm
- Load capacity at 4 km/h: 250 kg
- Axle bore Ø: 8.5 mm
-
ID 66847
Swivel castor 80 mm, polyamide, plain bearing, plate 105x85 mm, 150 kg
Bearing: plain bearing - Wheel diameter: 80 mm
- Wheel width: 35 mm
- Load capacity at 4 km/h: 150 kg
- Total height: 106 mm
- Top plate size: 105x
85 mm
-
ID 45812
Heavy duty wheel 200 mm, polyamide, axle hole 20 mm, 750 kg
Bearing: ball bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 750 kg
- Axle bore Ø: 20 mm
-
ID 22830
Heavy duty fixed castor 200 mm, polyamide, plate 140x110 mm, 500 kg
Bearing: ball bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 500 kg
- Total height: 240 mm
- Top plate size: 140x
110 mm
-
ID 30463
Swivel castor with total lock 125 mm, polyamide, 250 kg
Bearing: roller bearing - Wheel diameter: 125 mm
- Wheel width: 38 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 155 mm
- Top plate size: 105x
85 mm
-
ID 66734
Swivel castor 150 mm, polyamide, plate 135x110 mm, 300 kg
Bearing: roller bearing - Wheel diameter: 150 mm
- Wheel width: 46 mm
- Load capacity at 4 km/h: 300 kg
- Total height: 180 mm
- Top plate size: 135x
110 mm
-
ID 34463
Swivel castor 100 mm, polyamide, bolt hole 12.5 mm, 200 kg
Bearing: roller bearing - Wheel diameter: 100 mm
- Wheel width: 35 mm
- Load capacity at 4 km/h: 200 kg
- Total height: 128 mm
-
ID 34483
Swivel castor 150 mm, polyamide, bolt hole 12.5 mm, 300 kg
Bearing: plain bearing - Wheel diameter: 150 mm
- Wheel width: 46 mm
- Load capacity at 4 km/h: 300 kg
- Total height: 180 mm
-
ID 67011
Fixed castor 125 mm, polyamide, plain bearing, plate 105x85 mm, 250 kg
Bearing: plain bearing - Wheel diameter: 125 mm
- Wheel width: 38 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 155 mm
- Top plate size: 105x
85 mm
-
ID 42574
Heavy duty swivel castor with total lock 200 mm, polyamide, 500 kg
Bearing: ball bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 500 kg
- Total height: 240 mm
- Top plate size: 140x
110 mm
-
ID 66716
Wheel 150 mm, polyamide, plain bearing, axle hole 20 mm, 300 kg
Bearing: plain bearing - Wheel diameter: 150 mm
- Wheel width: 46 mm
- Load capacity at 4 km/h: 300 kg
- Axle bore Ø: 20 mm
-
ID 42754
Wheel 100 mm, polyamide, ball bearing, axle hole 12 mm, 200 kg
Bearing: ball bearing - Wheel diameter: 100 mm
- Wheel width: 35 mm
- Load capacity at 4 km/h: 200 kg
- Axle bore Ø: 12 mm
-
ID 42635
Wheel 100 mm, polyamide, ball bearing, axle hole 8.5 mm, 200 kg
Bearing: ball bearing - Wheel diameter: 100 mm
- Wheel width: 35 mm
- Load capacity at 4 km/h: 200 kg
- Axle bore Ø: 8.5 mm
-
ID 66846
Swivel castor 200 mm, polyamide, plate 135x110 mm, 300 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 300 kg
- Total height: 232 mm
- Top plate size: 135x
110 mm
-
ID 66849
Swivel castor 125 mm, polyamide, plate 105x85 mm, 250 kg
Bearing: plain bearing - Wheel diameter: 125 mm
- Wheel width: 38 mm
- Load capacity at 4 km/h: 250 kg
- Total height: 155 mm
- Top plate size: 105x
85 mm
-
ID 66996
Fixed castor 150 mm, polyamide, plate 135x110 mm, 300 kg
Bearing: roller bearing - Wheel diameter: 150 mm
- Wheel width: 46 mm
- Load capacity at 4 km/h: 300 kg
- Total height: 180 mm
- Top plate size: 135x
110 mm
-
ID 67002
Fixed castor 150 mm, polyamide, plate 135x110 mm, 300 kg
Bearing: roller bearing - Wheel diameter: 150 mm
- Wheel width: 46 mm
- Load capacity at 4 km/h: 300 kg
- Total height: 180 mm
- Top plate size: 135x
110 mm
-
ID 67003
Fixed castor 200 mm, polyamide, plate 135x110 mm, 300 kg
Bearing: roller bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 300 kg
- Total height: 232 mm
- Top plate size: 135x
110 mm
-
ID 54622
Heavy duty fixed castor 160 mm, polyamide, plate 140x110 mm, 400 kg
Bearing: ball bearing - Wheel diameter: 160 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 400 kg
- Total height: 200 mm
- Top plate size: 140x
110 mm
-
ID 66707
Wheel 200 mm, polyamide, roller bearing, axle hole 20 mm, 300 kg
Bearing: roller bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 300 kg
- Axle bore Ø: 20 mm
-
ID 34415
Swivel castor 150 mm, polyamide, bolt hole 12.5 mm, 300 kg
Bearing: roller bearing - Wheel diameter: 150 mm
- Wheel width: 46 mm
- Load capacity at 4 km/h: 300 kg
- Total height: 180 mm
-
ID 34694
Swivel castor with total lock 200 mm, polyamide, 300 kg
Bearing: plain bearing - Wheel diameter: 200 mm
- Wheel width: 50 mm
- Load capacity at 4 km/h: 300 kg
- Total height: 232 mm
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
Where polyamide wheels are used
Polyamide (PA6) is hard, wear-resistant and does not rust. We supply polyamide wheels and castors from 80 to 200 mm wheel diameter, with plate, back-hole or wheel hub fitting.
In retail they run under shopping trolleys, roll containers and transport trolleys. In production and warehouses they sit on pallet and transport trolleys. In hotels and catering you find them on serving and food trolleys, in healthcare on hospital beds, trolleys and stretchers.
Material properties
Polyamide hardly deforms under load and rolls easily. It is wear-resistant, does not corrode and suits indoor and outdoor use. It is lighter than metal. On delicate floors a rubber tyre is the better choice.
Standard range
Wheel diameters: 80, 100, 108, 125, 150 and 200 mm. Fitting: top plate, back hole or wheel hub. Bearings: plain, roller or ball. Types: fixed castor, swivel castor and swivel castor with brake.
Made at LIV Systems
We combine injection-moulded plastic parts with welded and pressed metal parts. The forks are electro-galvanised or powder coated. For OEM customers we supply large quantities and parts to drawing.
