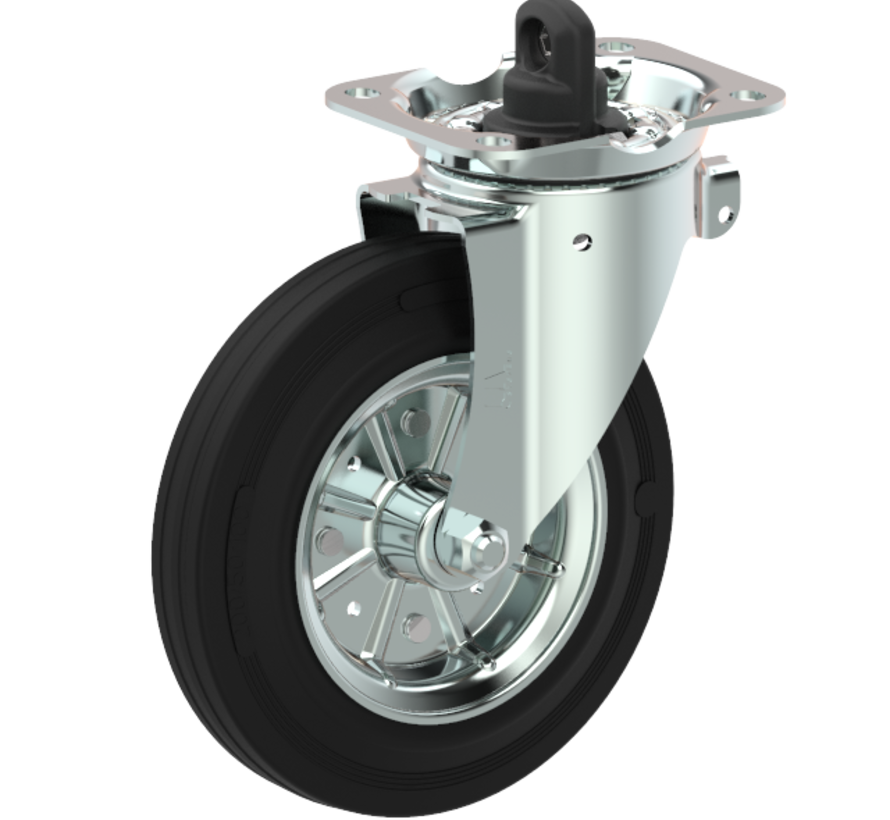

waste bin castors Swivel castor with brake + black rubber tyre Ø200 x W50mm for 250kg Prod ID: 44794

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

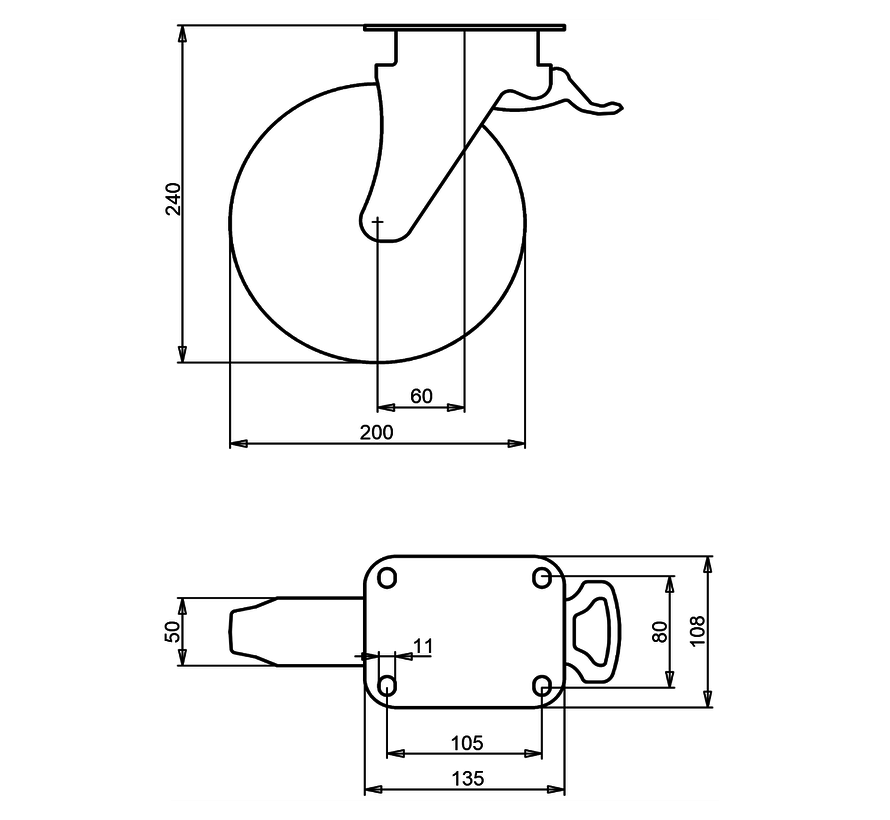

waste bin castors Swivel castor with brake with an overall height of 240 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x108 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free.

Approved and tested load capacity
Dynamic 250 kg
Static 310 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Container floor power Swivel castor with brake:
✓ diverse weather conditions
✓ robust handling
✓ lifetime

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS waste bin castors Swivel castor with brake + black rubber tyre Ø200 x W50mm for 250kg Prod ID: 44794

ID 44794: Castor overall height 240 mm | 4 mounting holes with distance 105x80 mm | Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A | Container floor power, for diverse weather conditions, for robust handling, long lifetime
