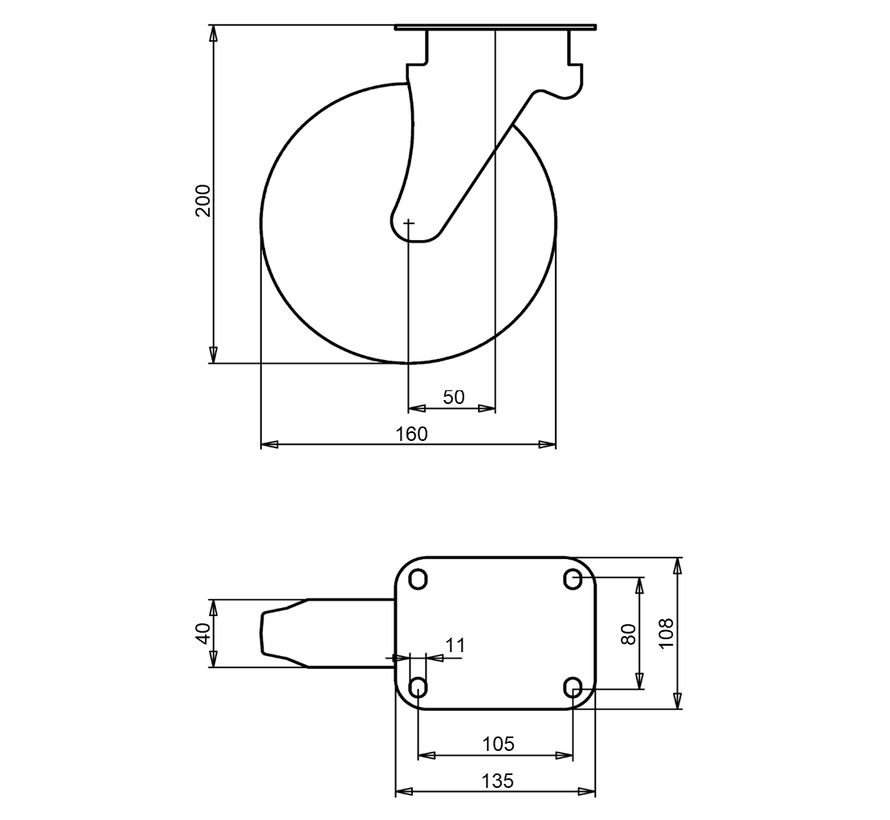

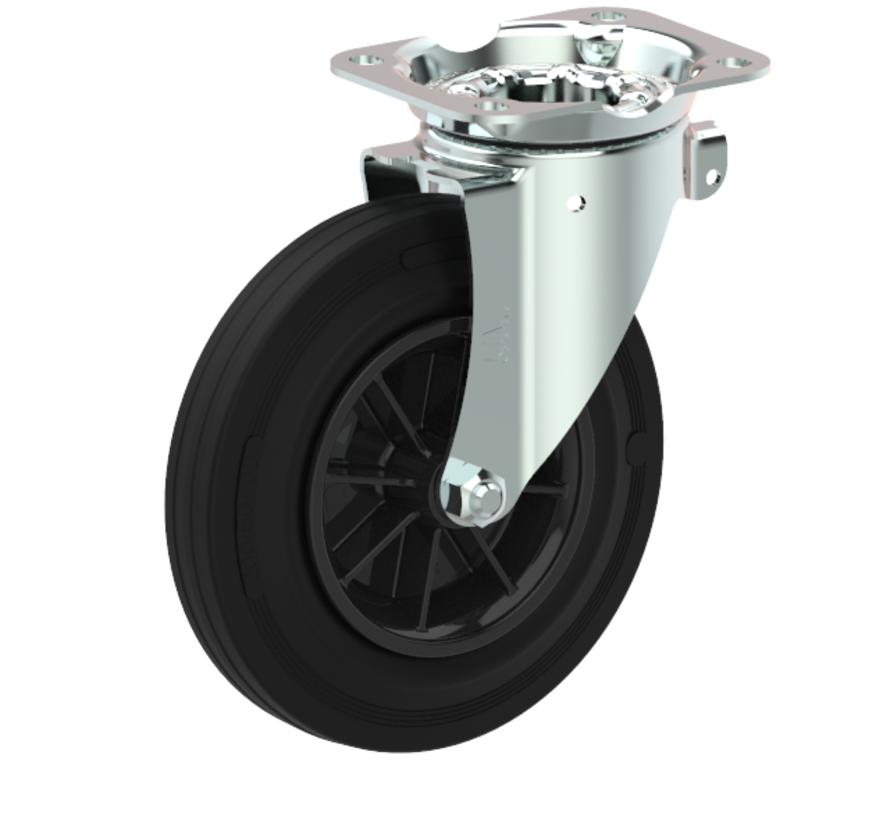

waste bin castors Swivel castor with an overall height of 200 mm
Wheel diameter x width: 160 x 40 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x108 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 200 kg
Static 250 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Container stand and roll Swivel castor:
✓ and humid surroundings
✓ throuhg the obstacles
✓ handling
waste bin castors Swivel castor + black rubber tyre Ø160 x W40mm for 200kg Prod ID: 44780
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-020-Z03
- SKU 44781
- EAN 3838461447815
Specifications
