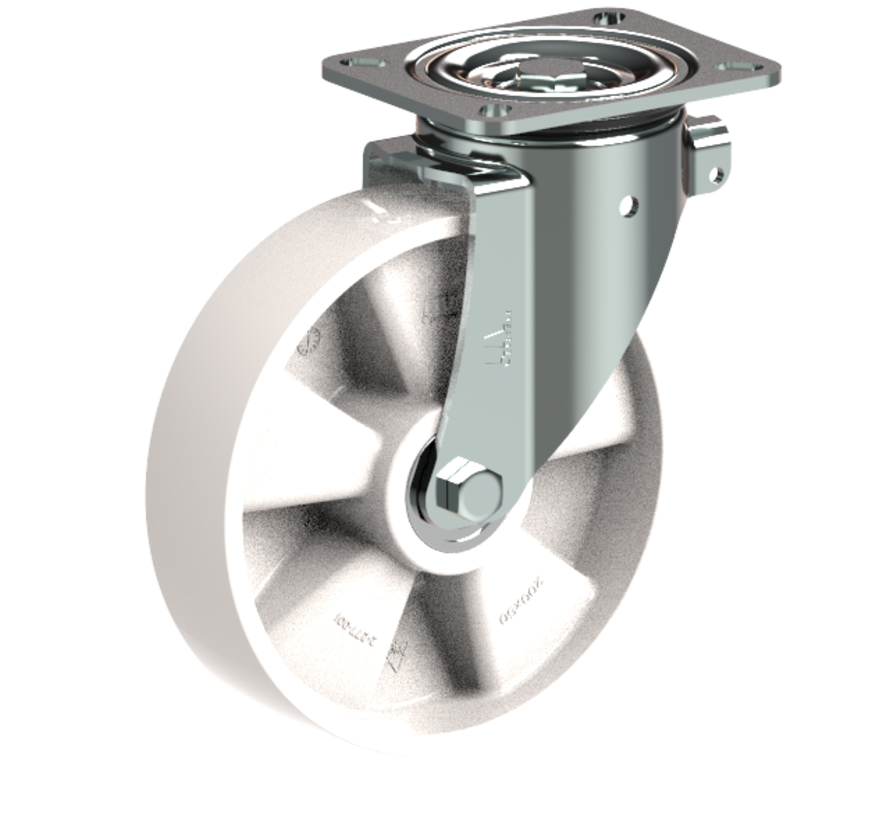

| Type | Heavy duty swivel castor |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | solid polyamide wheel, 70±5 Shore D |
| Wheel centre | polyamide |
| Bearing | ball bearing |
| Load capacity, dynamic | 500 kg |
| Load capacity, static | 620 kg |
| Top plate | 140x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 240 mm |
| Offset | 55 mm |
| Directional lock | optional |
| Weight | 2.8 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Low wear, little effort to keep rolling and easy to turn. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
