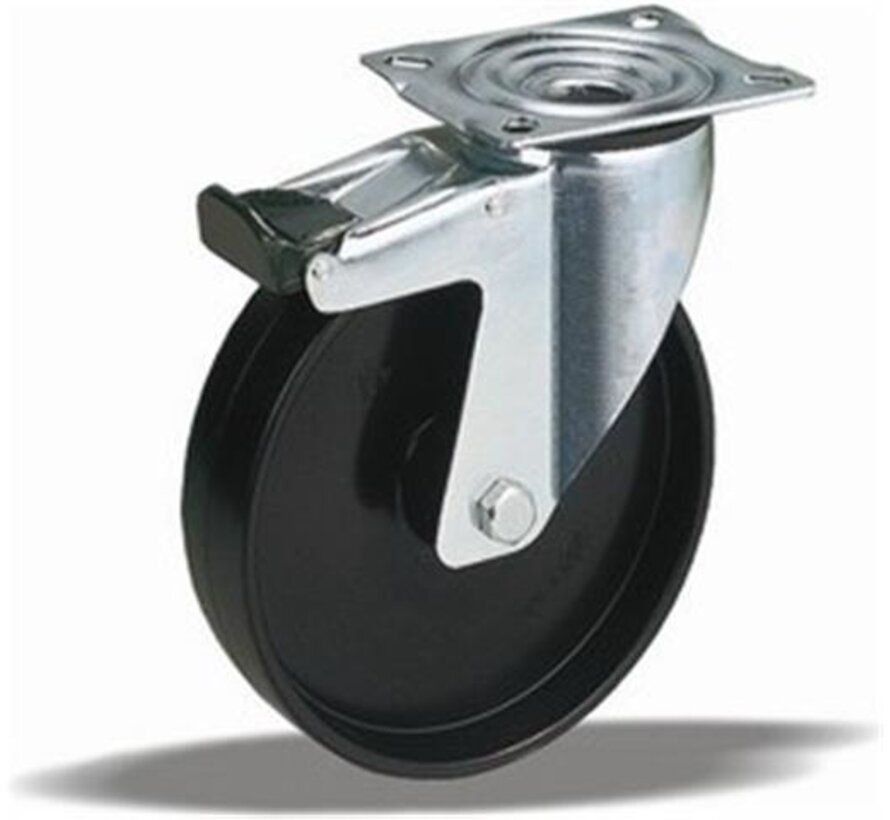

standard Swivel castor with brake with an overall height of 155 mm
Wheel diameter x width: 125 x 38 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with roller bearing and solid polyamide wheel with hardness 70±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 250 kg
Static 310 kg
Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C
Advantages of this Glide through the hall Swivel castor with brake:
✓ chemical resistance
✓ load capacity and shock impact resistant
✓ high temperature shifts
standard Swivel castor with brake + solid polyamide wheel Ø125 x W38mm for 250kg Prod ID: 30463
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-723 A
- SKU 30463
- EAN 3838461304637
Specifications
