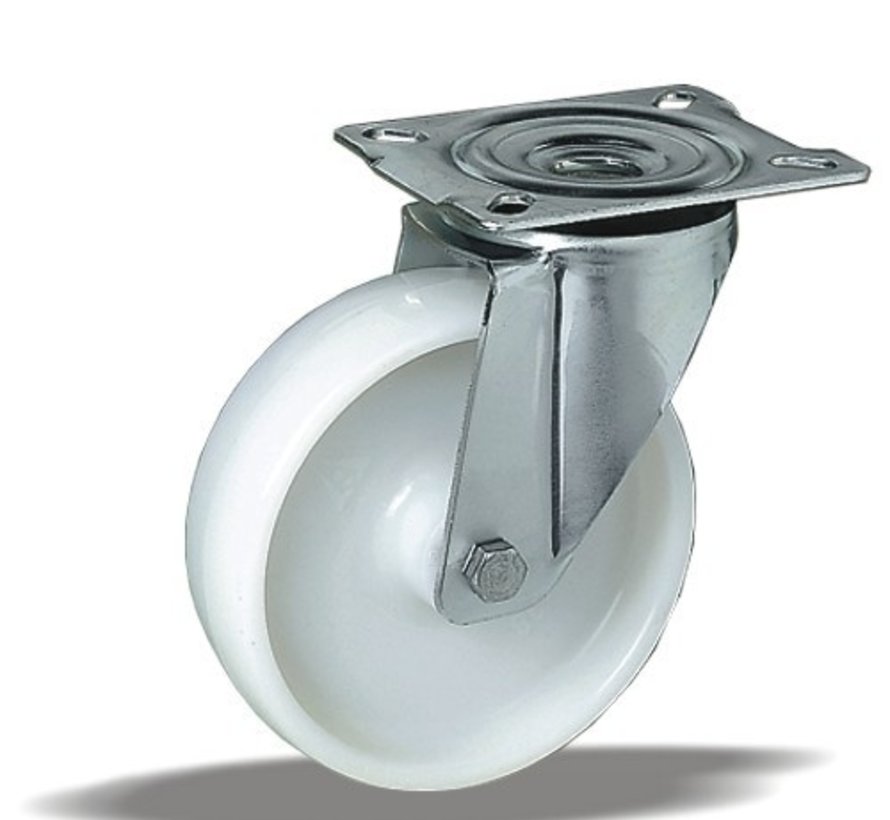

Swivel castor 150 mm, polyamide, roller bearing, plate 135x110 mm, 300 kg, Art. 2-663 ISO, wheel centre white
Swivel castor with solid polyamide wheel, wheel diameter 150 mm, on roller bearing. It carries 300 kg dynamic and 370 kg static, mounted on a 135x110 mm top plate with hole distance 105x80 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Swivel castor |
|---|---|
| Wheel diameter | 150 mm |
| Wheel width | 46 mm |
| Tread | solid polyamide wheel, 70±5 Shore D |
| Wheel centre | polyamide |
| Bearing | roller bearing |
| Load capacity, dynamic | 300 kg |
| Load capacity, static | 370 kg |
| Top plate | 135x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 180 mm |
| Offset | 50 mm |
| Weight | 1.7 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
| Tread hardness | 70 Shore D |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Polyamide resists many chemicals, carries high loads and takes shock impact. It tolerates large temperature swings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-663 ISO |
|---|---|
| SKU | 66734 |
| EAN | 3838461667343 |
