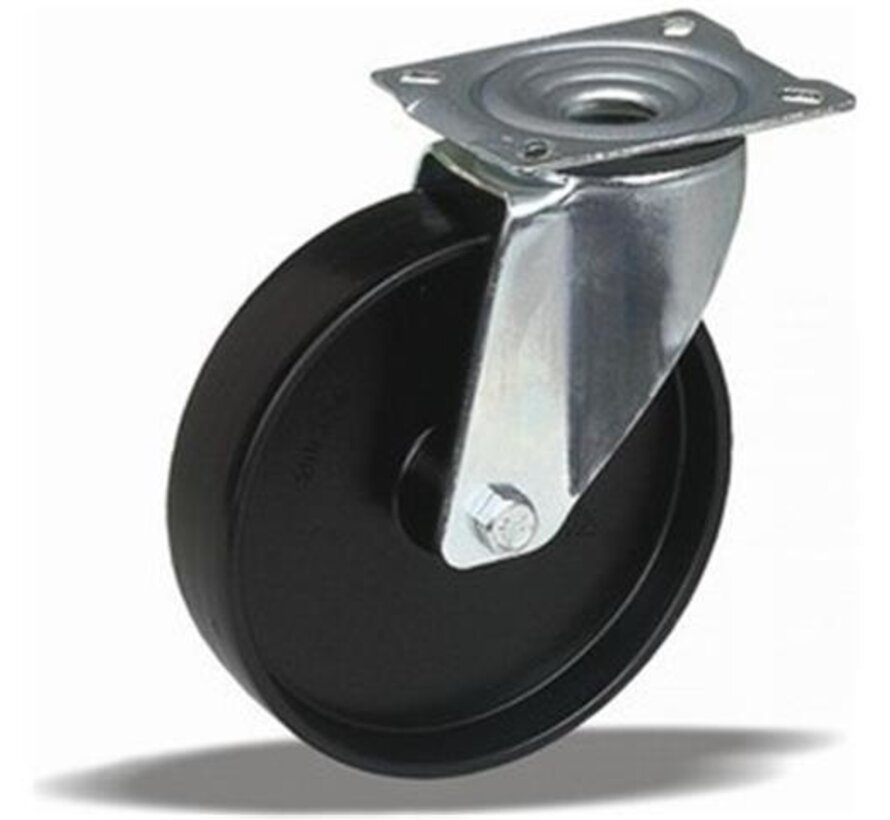

standard Swivel castor + solid polyamide wheel Ø200 x W50mm for 300kg Prod ID: 66846

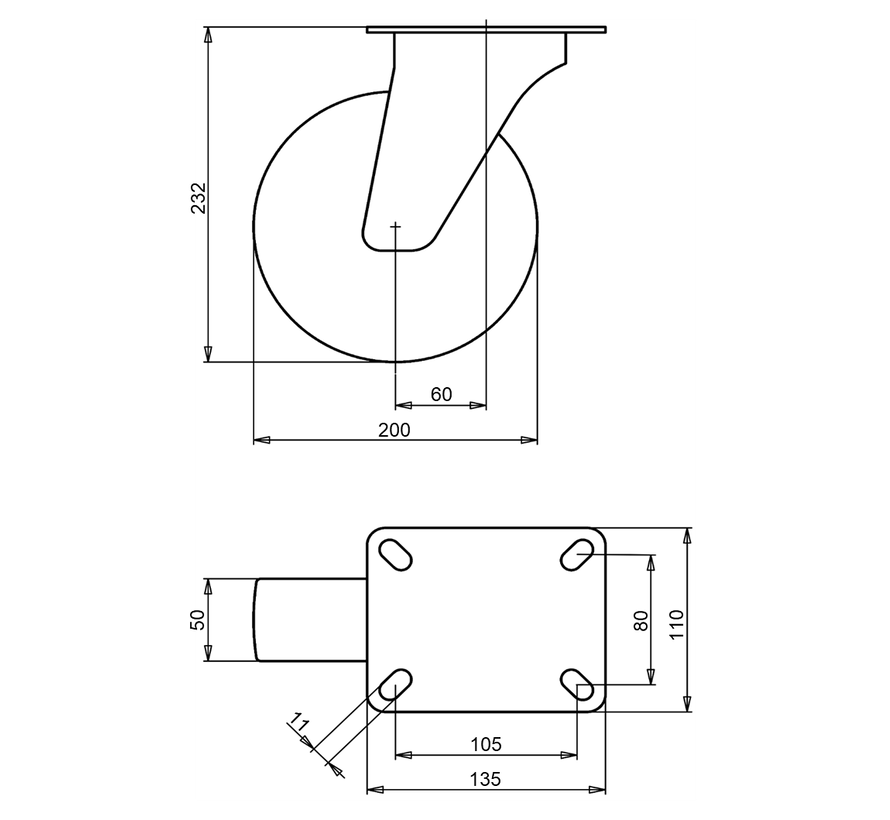

standard Swivel castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C



Advantages of this Glide through the hall Swivel castor:
✓ chemical resistance
✓ load capacity and shock impact resistant
✓ high temperature shifts
