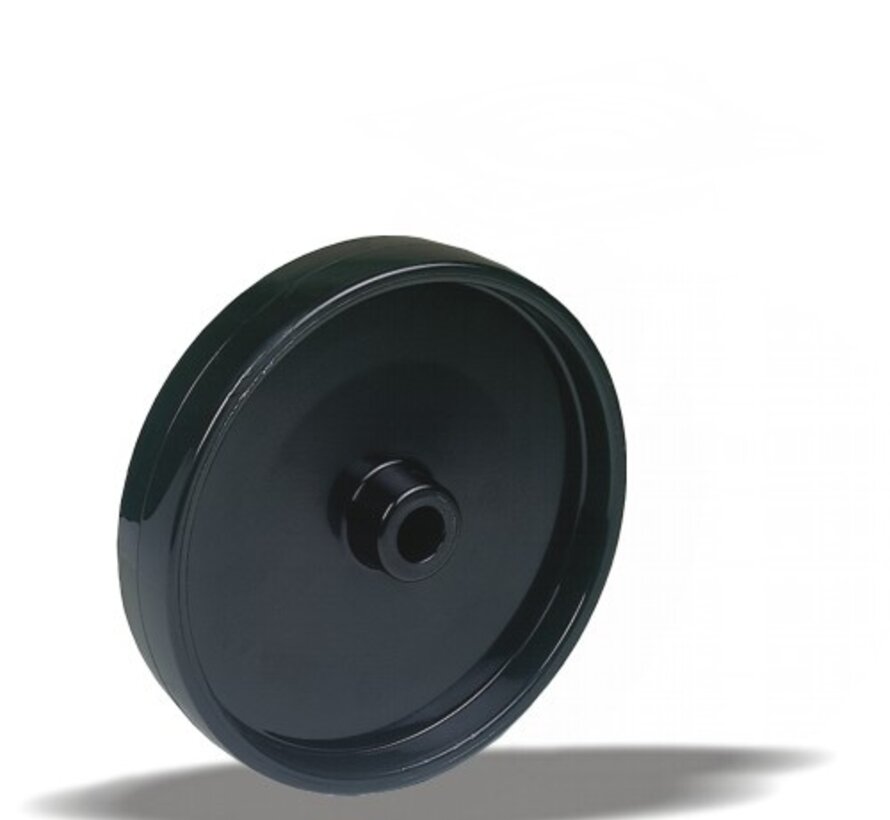

Wheel 100 mm, polyamide, ball bearing, axle hole 8.5 mm, 200 kg, Art. 2-681-20K, wheel centre black

Wheel with solid polyamide wheel, wheel diameter 100 mm, on ball bearing. It carries 200 kg dynamic and 250 kg static, with a 8.5 mm axle hole.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeWheel
Wheel diameter100 mm
Wheel width35 mm
Treadsolid polyamide wheel, 70±5 Shore D
Wheel centrepolyamide
Bearingball bearing
Load capacity, dynamic200 kg
Load capacity, static250 kg
Axle hole8.5 mm
Weight0.17 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C
FittingWheel hub
Hub length44 mm
Tread hardness70 Shore D

Properties and use

Polyamide resists many chemicals, carries high loads and takes shock impact. It tolerates large temperature swings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
