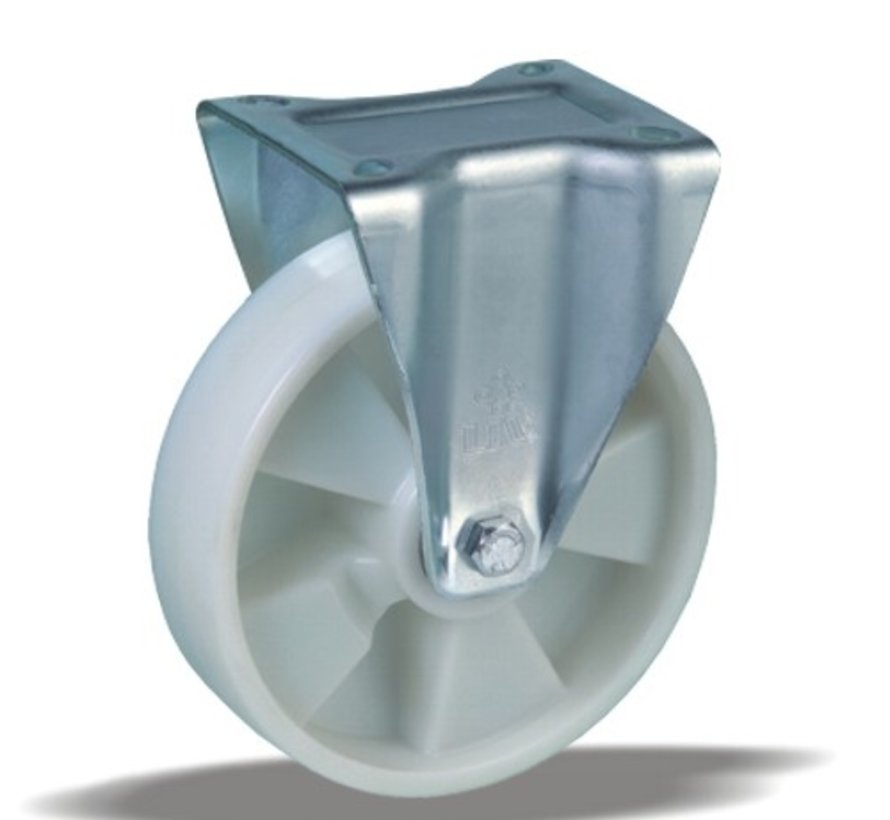

heavy duty Fixed castor with an overall height of 240 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and solid polyamide wheel with hardness 70±5 Shore D.
Approved and tested load capacity
Dynamic 500 kg
Static 620 kg
Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C
Advantages of this High load easy start Fixed castor:
✓ wearout
✓ effort to keep rolling
✓ to turn
heavy duty Fixed castor + solid polyamide wheel Ø200 x W50mm for 500kg Prod ID: 22830
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-246 ISO
- SKU 22830
- EAN 3838461228308
Specifications
