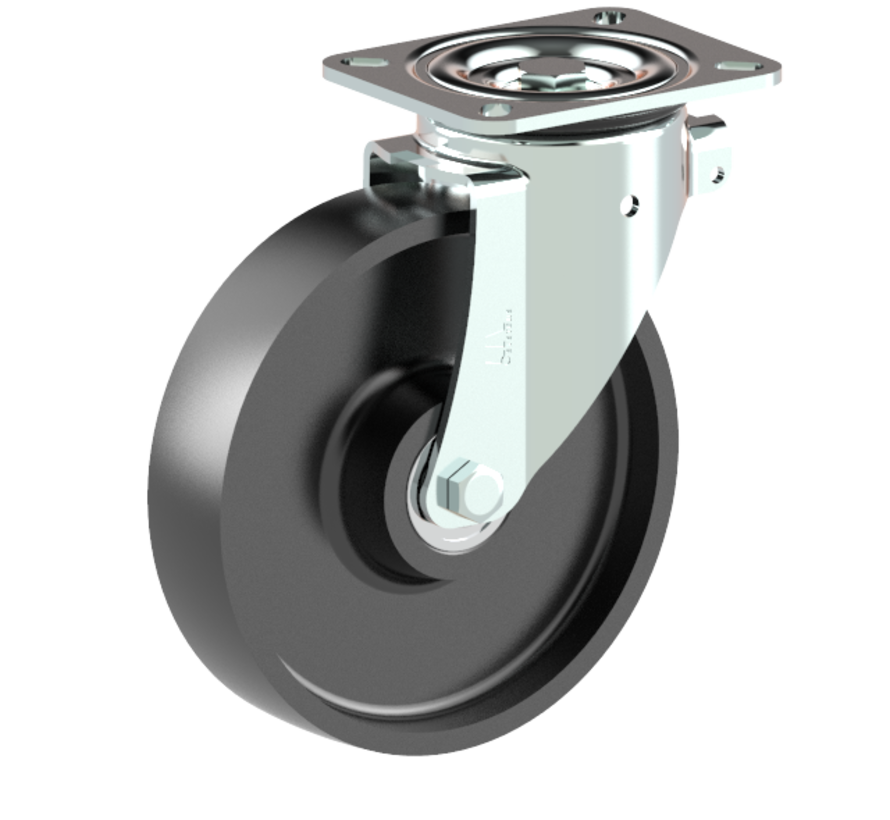

| Type | Heavy duty swivel castor |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | cast iron tread, 180-220 180-220 HB |
| Wheel centre | cast iron |
| Bearing | ball bearing |
| Load capacity, dynamic | 800 kg |
| Load capacity, static | 1000 kg |
| Top plate | 140x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 240 mm |
| Offset | 60 mm |
| Directional lock | optional |
| Weight | 6.55 kg |
| Temperature, continuous | -40 to +130 °C |
| Temperature, short exposure (max. 10 min) | -40 to +130 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Wears slowly and rolls with low resistance. Large temperature changes are no problem. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
