furniture Swivel castor with brake + polyethylene tread Ø75 x W25mm for 75kg Prod ID: 39183

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

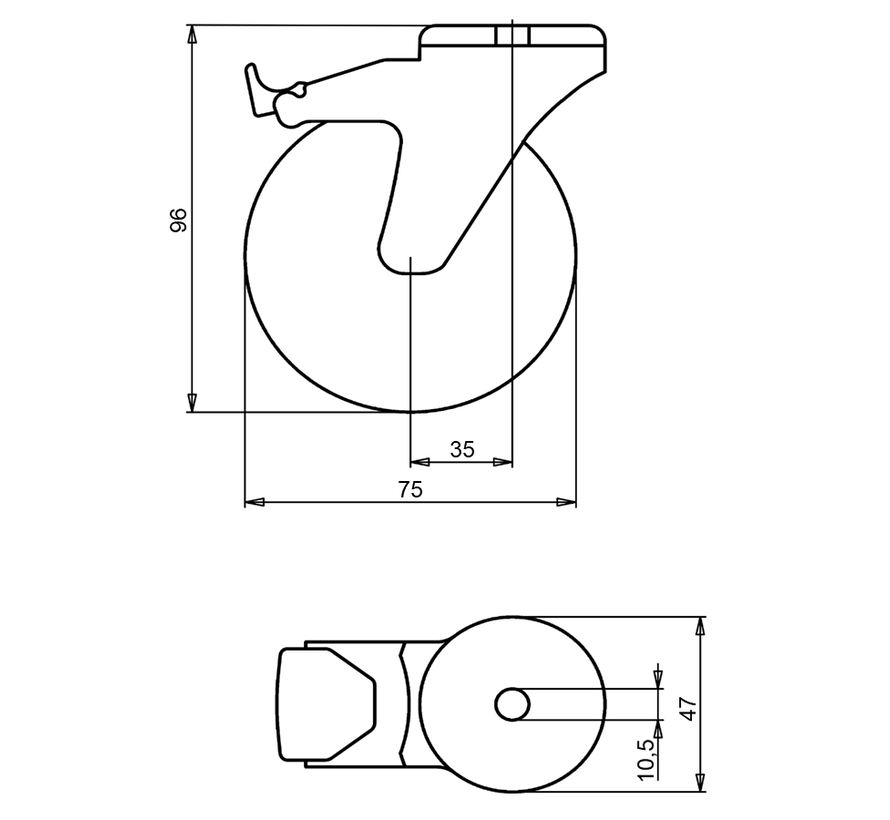

furniture Swivel castor with brake with an overall height of 96 mm
Wheel diameter x width: 75 x 25 mm
Top plate with 4 mounting holes of 10,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 47 mm
Wheel with plain bearing and polyethylene tread with hardness 92 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 75 kg
Static 90 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Invisible foundation Swivel castor with brake:
✓ deformation if rarely moved
✓ markings on the floor
✓ to turn

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + polyethylene tread Ø75 x W25mm for 75kg Prod ID: 39183

ID 39183: Castor overall height 96 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and polyethylene tread with hardness 92 ° Shore A | Invisible foundation, low deformation if rarely moved, no markings on the floor, easy to turn
