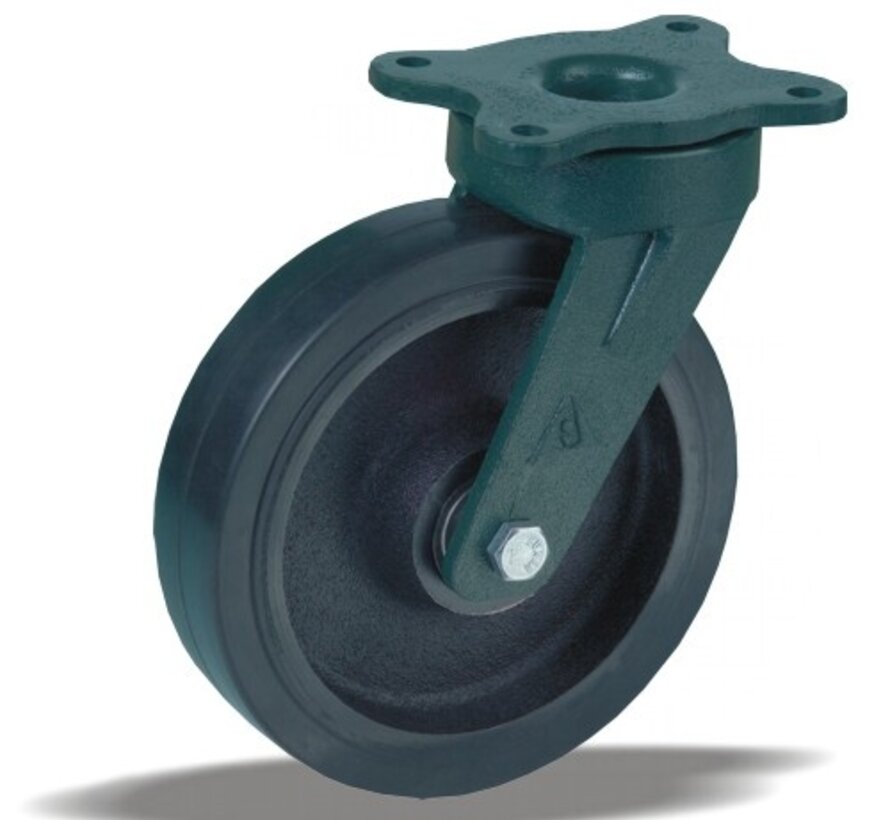

heavy duty Swivel castor + injection-moulded polyurethane tread Ø200 x W50mm for 1000kg Prod ID: 61003

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Swivel castor with an overall height of 245 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on cast iron.

Approved and tested load capacity
Dynamic 1000 kg
Static 1250 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Eternal moving Swivel castor:
✓ loosing shape being stationed
✓ to push
✓ for grainy floors

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Swivel castor + injection-moulded polyurethane tread Ø200 x W50mm for 1000kg Prod ID: 61003

ID 61003: Castor overall height 245 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A | Eternal moving, not loosing shape being stationed, easy to push, perfect for
