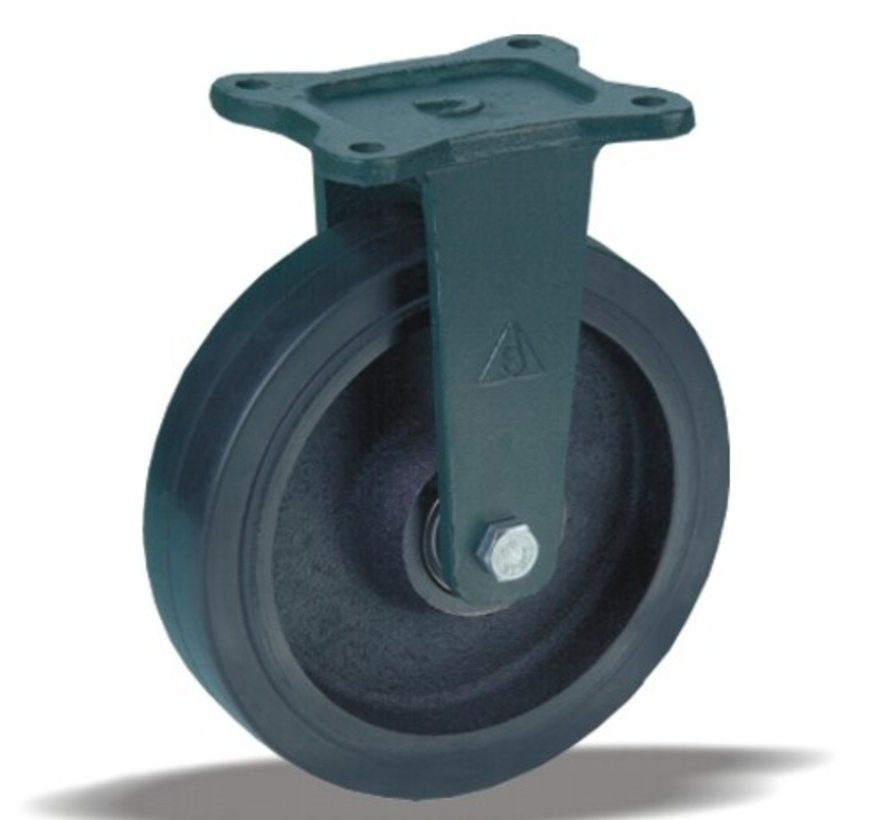

| Type | Heavy duty fixed castor |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | black rubber tread, 65 Shore A |
| Tread colour | black |
| Wheel centre | cast iron |
| Bearing | ball bearing |
| Load capacity, dynamic | 500 kg |
| Load capacity, static | 620 kg |
| Top plate | 140x118 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 245 mm |
| Weight | 5.7 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Moves quietly, protects heavy goods and copes with unfavourable surroundings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
