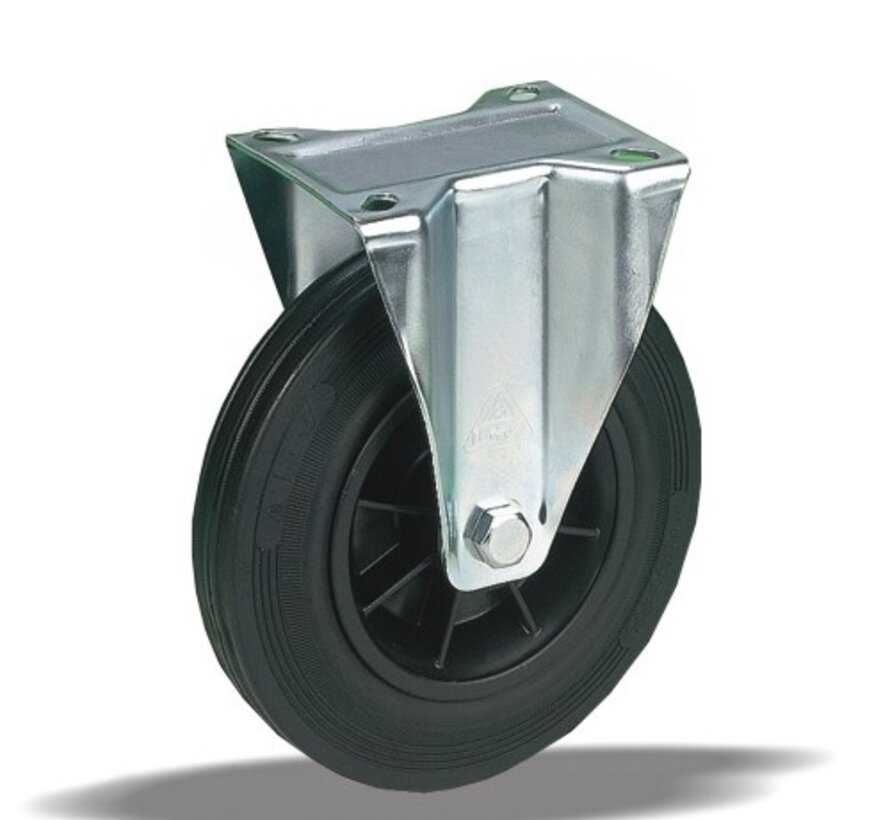

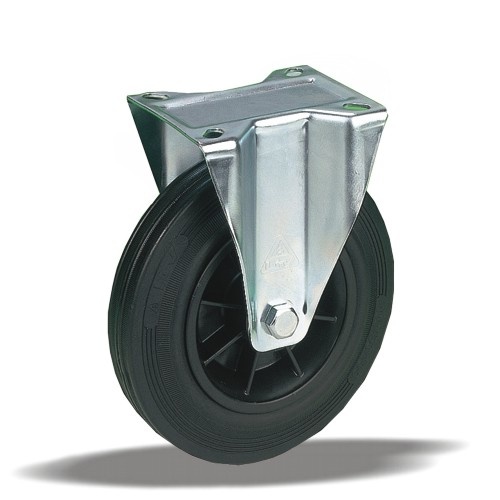

standard fixed transport castor with an overall height of 210 mm
Wheel diameter x width: 180 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and black rubber tyre with hardness 80 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 200 kg
Static 250 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Smooth drive wheel fixed transport castor:
✓ wet floor
✓ reduces the transmission of both vibration and noise
✓ with low obstacles
standard fixed transport castor + black rubber tyre Ø180 x W50mm for 200kg Prod ID: 31523
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-963 ISO
- SKU 31523
- EAN 3838461315237
Specifications
