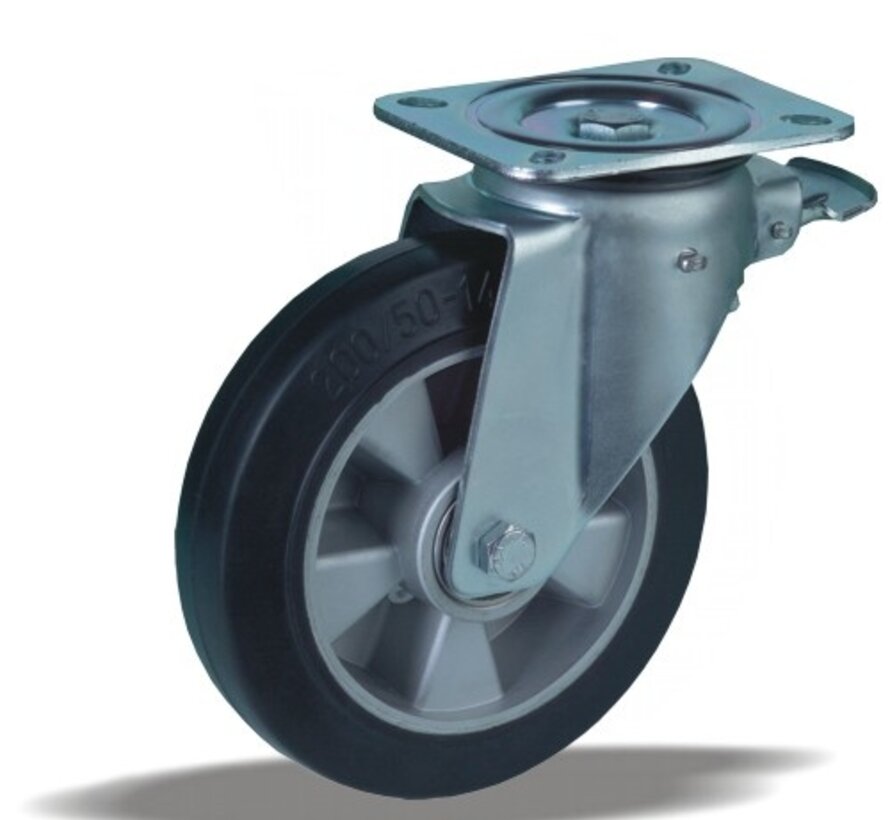

Heavy duty swivel castor with brake with a 200 mm wheel, black rubber tread, on ball bearing. It carries 500 kg dynamic and 620 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm.
| Type | Heavy duty swivel castor with brake |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | black rubber tread, 65 Shore A |
| Tread colour | black |
| Wheel centre | aluminium |
| Bearing | ball bearing |
| Load capacity, dynamic | 500 kg |
| Load capacity, static | 620 kg |
| Top plate | 140x110 mm |
| Hole distance | 105x80 mm |
| Hole diameter | 11 mm |
| Overall height | 240 mm |
| Offset | 60 mm |
| Brake | total brake (locks wheel and swivel) |
| Directional lock | optional |
| Weight | 4 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Moves goods quietly over uneven floors and carries heavy loads. On request: other wheel and tyre colours, and an electrically conductive (EDS) or antistatic tyre.
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
