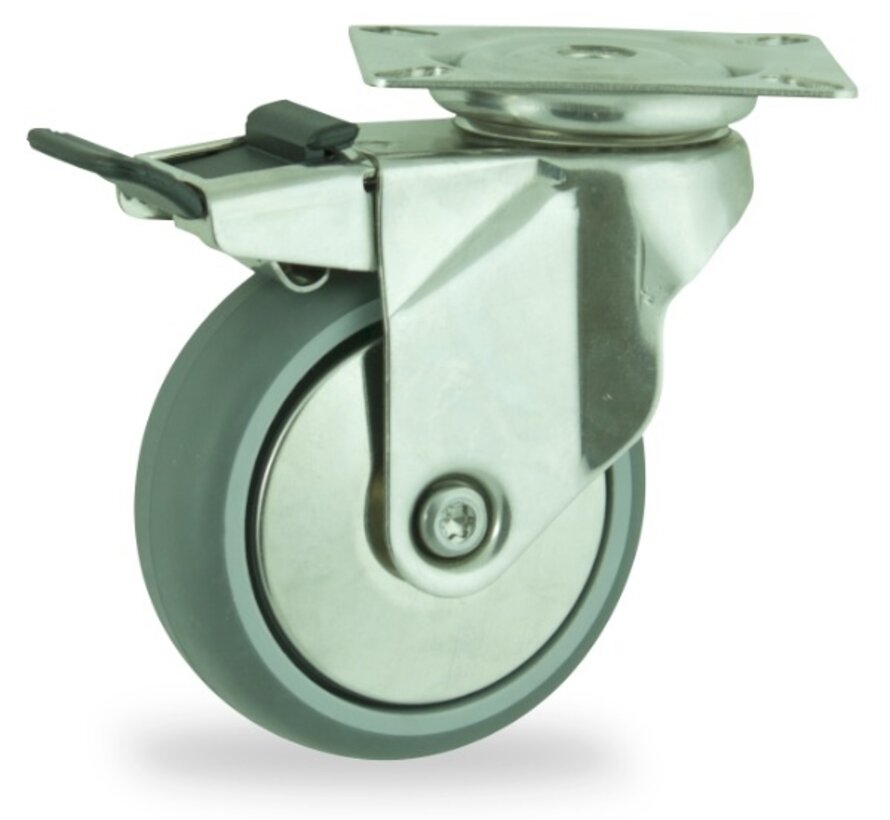

institutianal Swivel castor with brake with an overall height of 123 mm
Wheel diameter x width: 100 x 24 mm
Top plate with 4 mounting holes of 6,4 mm, mounting hole distance 43x43 mm and top plate outer dimensions: 60x60 mm
Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 70 kg
Static 80 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Graceful moving Swivel castor with brake:
✓ proof
✓ no marks on the floor
✓ rotation
institutianal Swivel castor with brake + polyethylene tread Ø100 x W24mm for 70kg Prod ID: 44821
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-7PZ-20K
- SKU 44821
- EAN 3838461448218
Specifications
