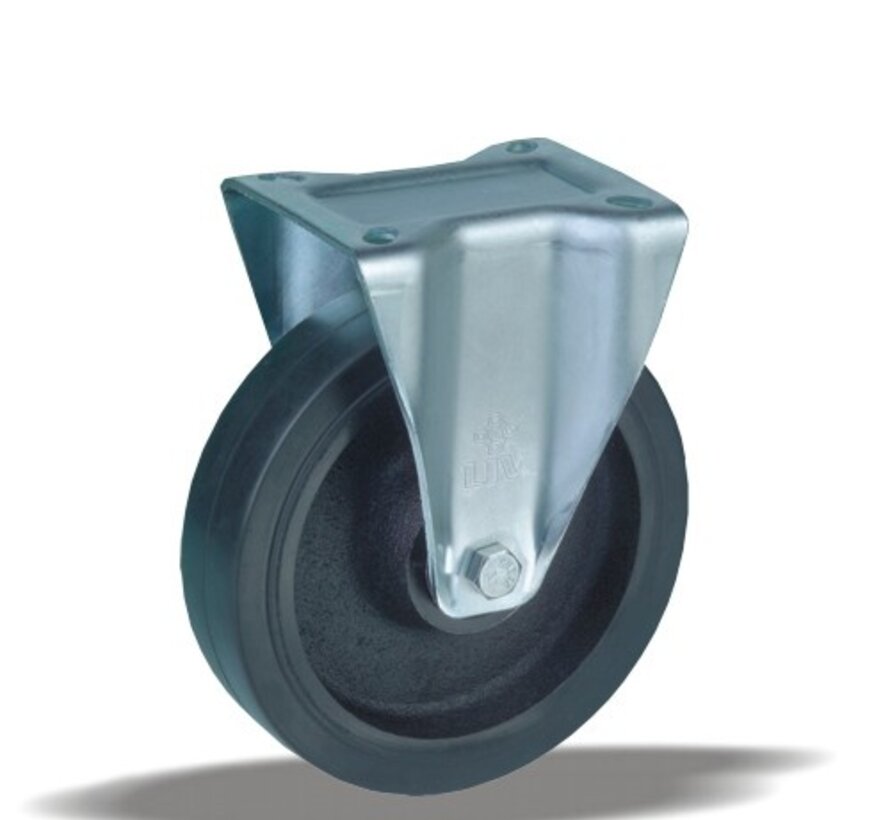

heavy duty Fixed castor + black rubber tyre Ø200 x W50mm for 600kg Prod ID: 42424

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Fixed castor with an overall height of 240 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and black rubber tyre with hardness 65 ° Shore A on cast iron.

Approved and tested load capacity
Dynamic 600 kg
Static 750 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Heavy floor convey Fixed castor:
✓ friendly
✓ surpassing obstacles
✓ loads smooth ride

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Fixed castor + black rubber tyre Ø200 x W50mm for 600kg Prod ID: 42424

ID 42424: Castor overall height 240 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and black rubber tyre with hardness 65 ° Shore A | Heavy floor convey, floor friendly, easily surpassing obstacles, weightly loads smooth ride
