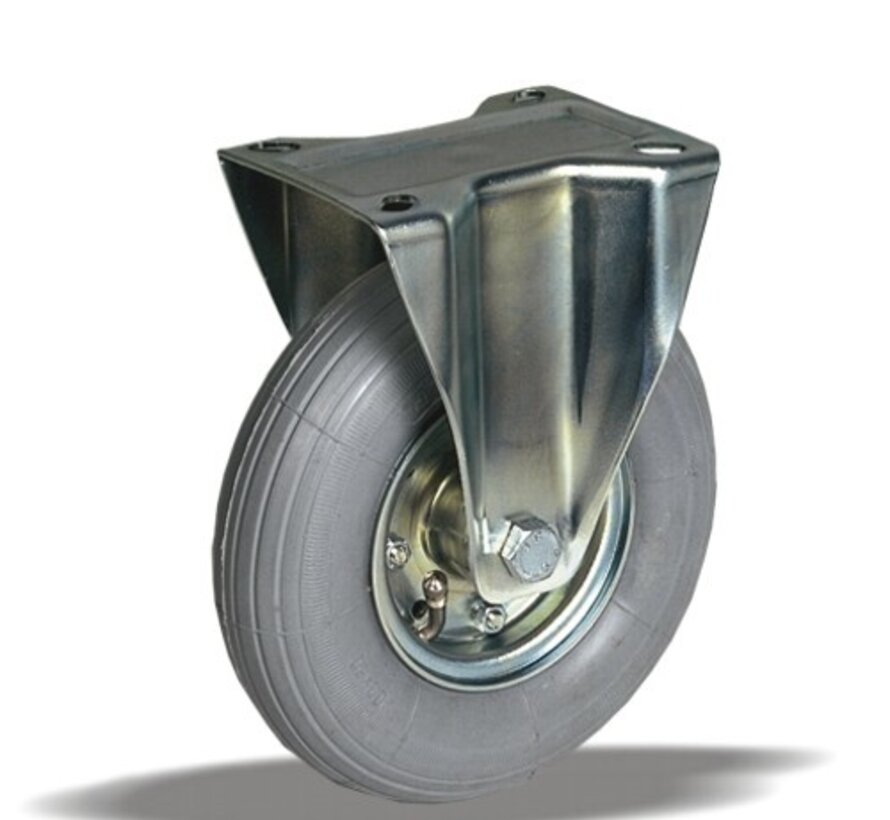

for rough floors Fixed castor + grey pneumatic Ø200 x W50mm for 75kg Prod ID: 62099

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

for rough floors Fixed castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with roller bearing and grey pneumatic with hardness 83 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free.

Approved and tested load capacity
Dynamic 75 kg
Static 90 kg

Temperature range:
Continious operation: -5 | +60°C
Short (10 min) exposure: -5 | +60°C

Advantages of this Soft route Fixed castor:
✓ over obstacles
✓ the floor untact
✓ crushed stone ground

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS for rough floors Fixed castor + grey pneumatic Ø200 x W50mm for 75kg Prod ID: 62099

ID 62099: Castor overall height 232 mm | 4 mounting holes with distance 105x80 mm | Wheel with roller bearing and grey pneumatic with hardness 83 ° Shore A | Soft route, gentle over obstacles, keep the floor untact, for crushed stone ground
