standard Swivel castor + elastic rubber tyre Ø200 x W50mm for 300kg Prod ID: 40235

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

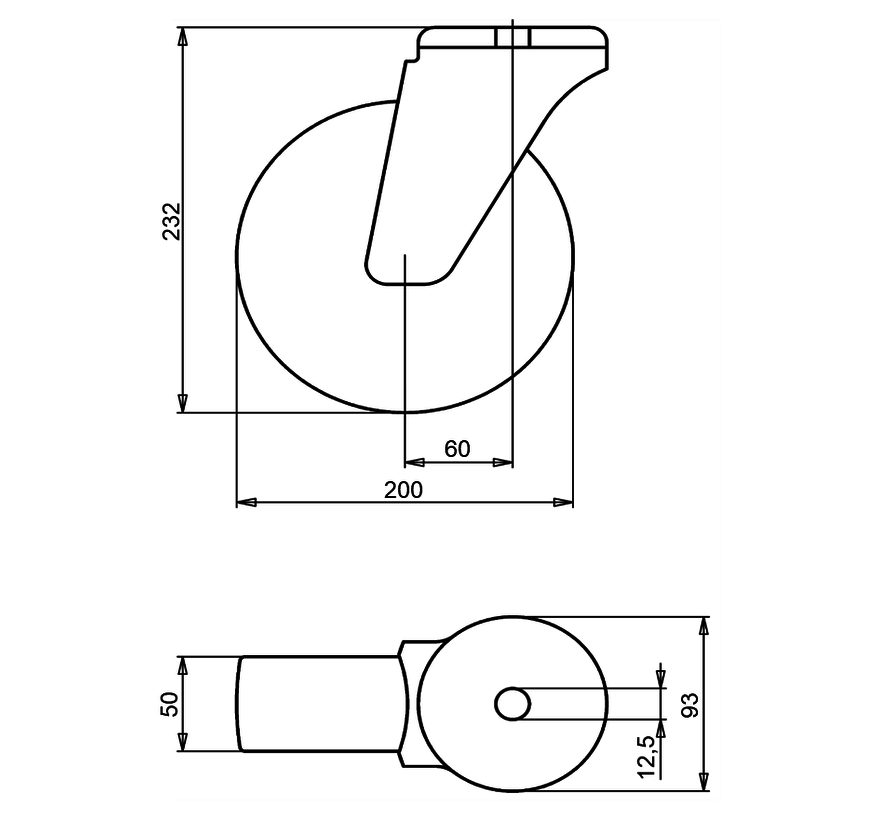

standard Swivel castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with roller bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Soft floor wheel Swivel castor:
✓ force to start
✓ ride
✓ to surface when stationed

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor + elastic rubber tyre Ø200 x W50mm for 300kg Prod ID: 40235

ID 40235: Castor overall height 232 mm | 4 mounting holes with distance #$% mm | Wheel with roller bearing and elastic rubber tyre with hardness 70 ° shore A | Soft floor wheel, low force to start, smooth ride, gentle to surface when stationed
