standard Swivel castor + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 40204

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

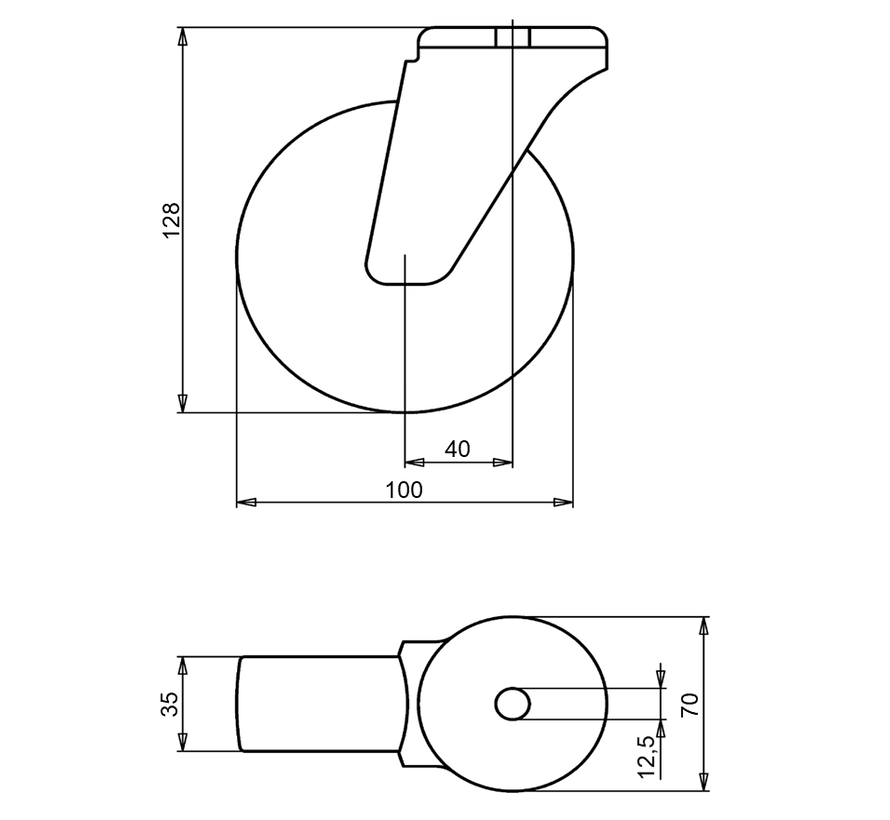

standard Swivel castor with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with plain bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Soft floor wheel Swivel castor:
✓ force to start
✓ ride
✓ to surface when stationed

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 40204

ID 40204: Castor overall height 128 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and elastic rubber tyre with hardness 70 ° shore A | Soft floor wheel, low force to start, smooth ride, gentle to surface when stationed
