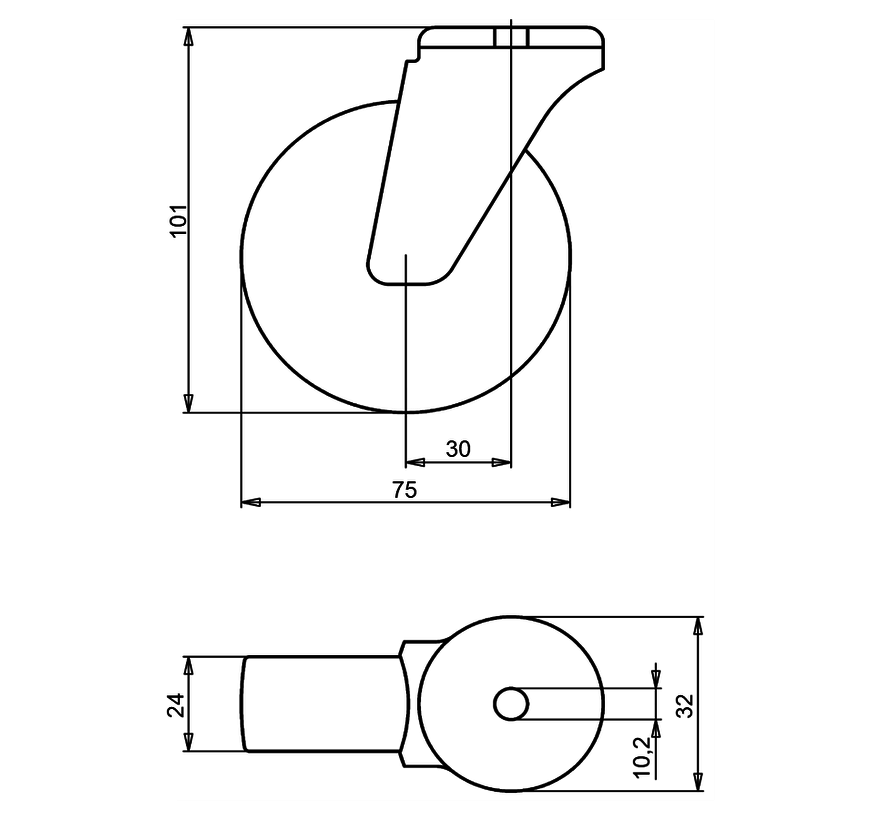

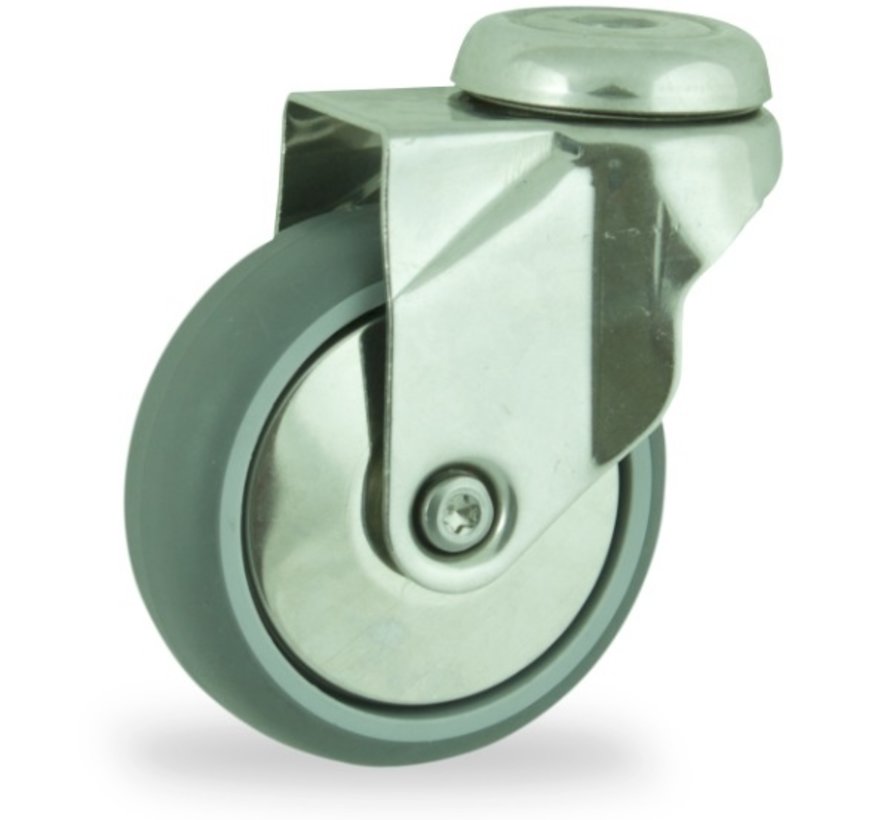

institutianal Swivel castor with an overall height of 101 mm
Wheel diameter x width: 75 x 24 mm
Top plate with 4 mounting holes of 10,2 mm, mounting hole distance #$% mm and top plate outer dimensions: 32 mm
Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 60 kg
Static 70 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Graceful moving Swivel castor:
✓ proof
✓ no marks on the floor
✓ rotation
institutianal Swivel castor + polyethylene tread Ø75 x W24mm for 60kg Prod ID: 44830
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-7LG-15K
- SKU 44830
- EAN 3838461448300
Specifications
