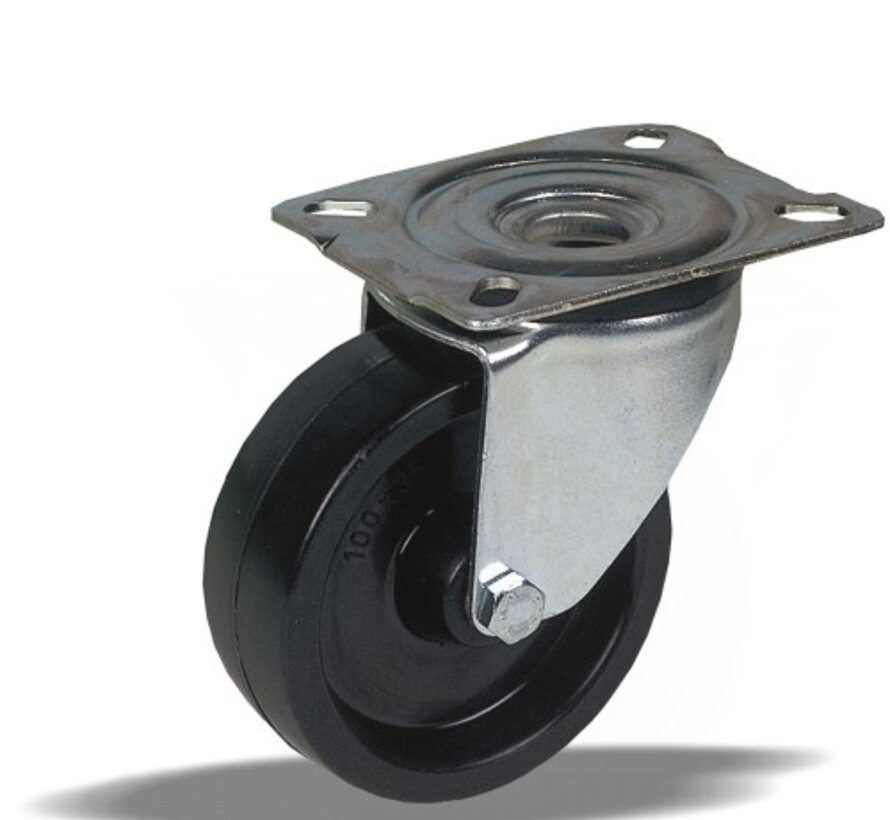

| Type | Swivel castor |
|---|---|
| Wheel diameter | 150 mm |
| Wheel width | 46 mm |
| Tread | heat-resistant solid polyamide wheel, 85±5 Shore D |
| Wheel centre | heat-resistant polyamide |
| Bearing | plain bearing |
| Load capacity, dynamic | 200 kg |
| Load capacity, static | 250 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Fixing hole diameter | 9 mm |
| Overall height | 180 mm |
| Offset | 40 mm |
| Weight | 0.86 kg |
| Temperature, continuous | -25 to +250 °C |
| Temperature, short exposure (max. 10 min) | -40 to +300 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Built for heat and used in bakeries. The continuous and short-term temperatures are in the table. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
