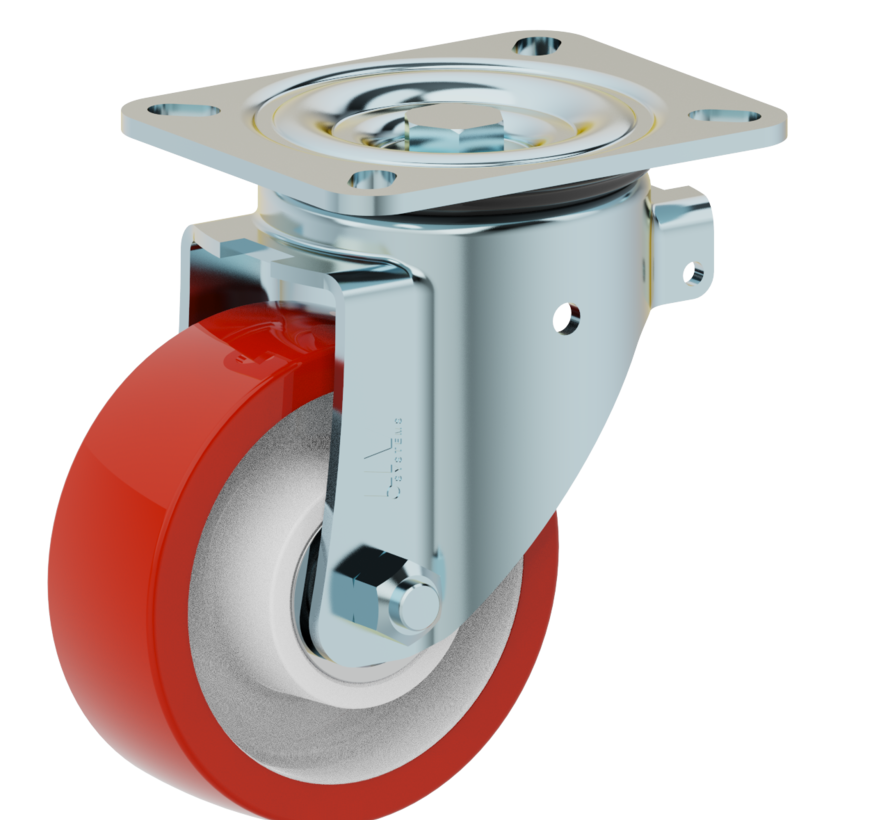

heavy duty Swivel castor with an overall height of 169 mm
Wheel diameter x width: 125 x 45 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 110x85 mm and top plate outer dimensions: 135x110 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on aluminium.
Approved and tested load capacity
Dynamic 500 kg
Static 600 kg
Temperature range:
Continious operation: -25 | -55°C
Short (10 min) exposure: -40 | +55°C
Advantages of this Indestructable footing Swivel castor:
✓ burden transport
✓ resistance
✓ own weight
heavy duty Swivel castor + injection-moulded polyurethane tread Ø125 x W45mm for 500kg Prod ID: 48295
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-152-25K
- SKU 48295
- EAN 3838461482953
Specifications
