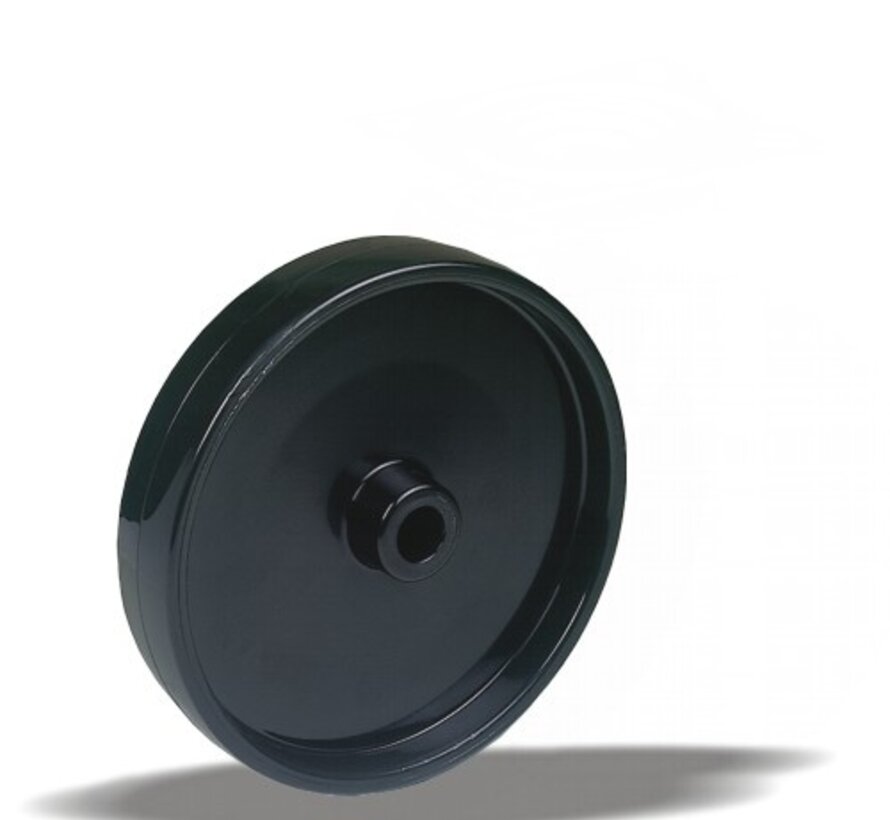

standard wheel + solid polypropylene wheel Ø125 x W38mm for 150kg Prod ID: 58477

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Wheel with roller bearing and solid polypropylene wheel with hardness 60±5 Shore D
Wheel diameter x width: 125 x 38 mm
Axle hole: 12 mm
Hub length: mm

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C

Advantages of this Long floor drive wheel:
✓ acidic environment
✓ wear off
✓ rolling resistance

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard wheel + solid polypropylene wheel Ø125 x W38mm for 150kg Prod ID: 58477

ID 58477:standard Wheel with roller bearing and solid polypropylene wheel with hardness 60±5 Shore D | Axle hole: 12 mm | Hub length: mm | Long floor drive, for acidic environment, low wear off, low rolling resistance
