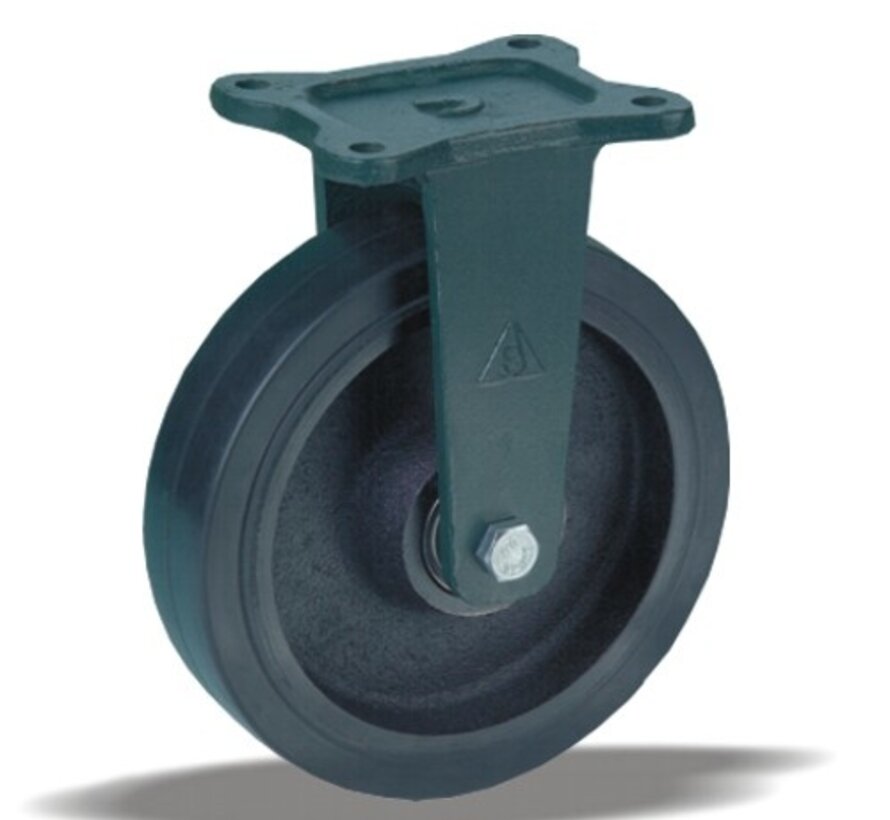

heavy duty Fixed castor + black rubber tyre Ø160 x W50mm for 400kg Prod ID: 54623

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Fixed castor with an overall height of 205 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x118 mm
Wheel with ball bearing and black rubber tyre with hardness 65 ° Shore A on cast iron.

Approved and tested load capacity
Dynamic 400 kg
Static 500 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Custioned floor transport Fixed castor:
✓ moving
✓ goods protected
✓ unfavourable environment

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Fixed castor + black rubber tyre Ø160 x W50mm for 400kg Prod ID: 54623

ID 54623: Castor overall height 205 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and black rubber tyre with hardness 65 ° Shore A | Custioned floor transport, silent moving, heavy goods protected, for unfavourable environment
