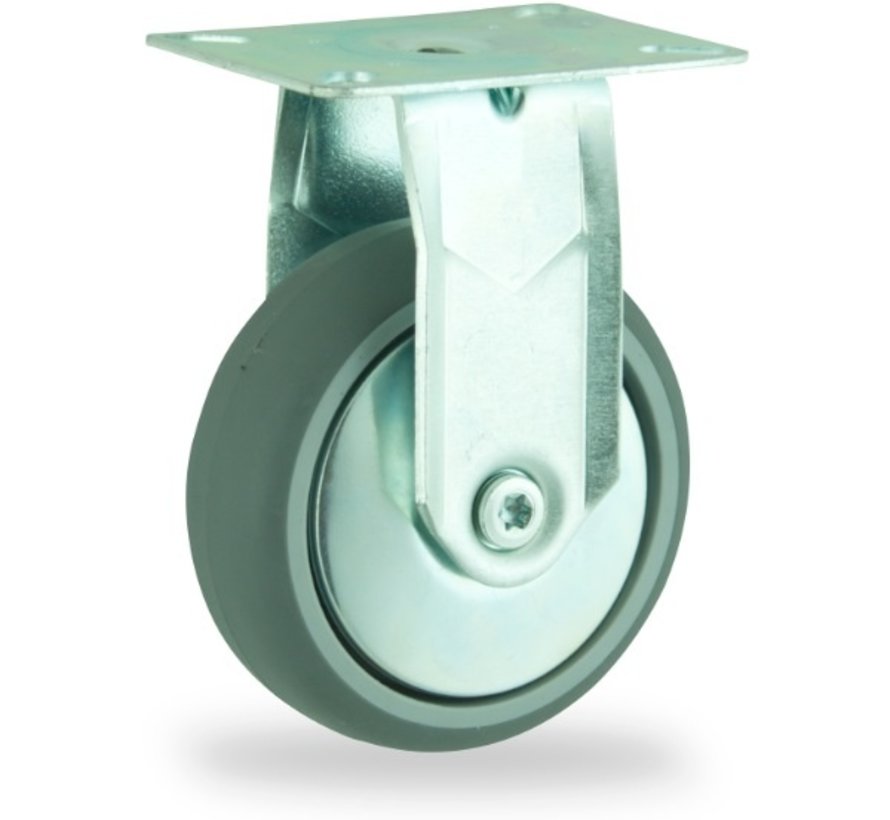

institutianal Fixed castor + polyethylene tread Ø100 x W24mm for 70kg Prod ID: 44826

Product description

institutianal Fixed castor with an overall height of 123 mm
Wheel diameter x width: 100 x 24 mm
Top plate with 4 mounting holes of 6,4 mm, mounting hole distance 43x43 mm and top plate outer dimensions: 60x60 mm
Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 70 kg
Static 80 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C



Advantages of this Graceful moving Fixed castor:
✓ proof
✓ no marks on the floor
✓ rotation

Deep draw press forming and surface treatment of OE steel parts is our expertise

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS institutianal Fixed castor + polyethylene tread Ø100 x W24mm for 70kg Prod ID: 44826

ID 44826: Castor overall height 123 mm | 4 mounting holes with distance 43x43 mm | Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A | Graceful moving, dust proof, leaves no marks on the floor, ease rotation

  • You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
  • Ask us for CAD/STEP/Iges Models
  • Fastest delivery of high quantities of castors possible
  • Press forming steel OEM parts is our expetise

Product information

  • Article code 2-7PS-20K
  • SKU 44826
  • EAN 3838461448263
