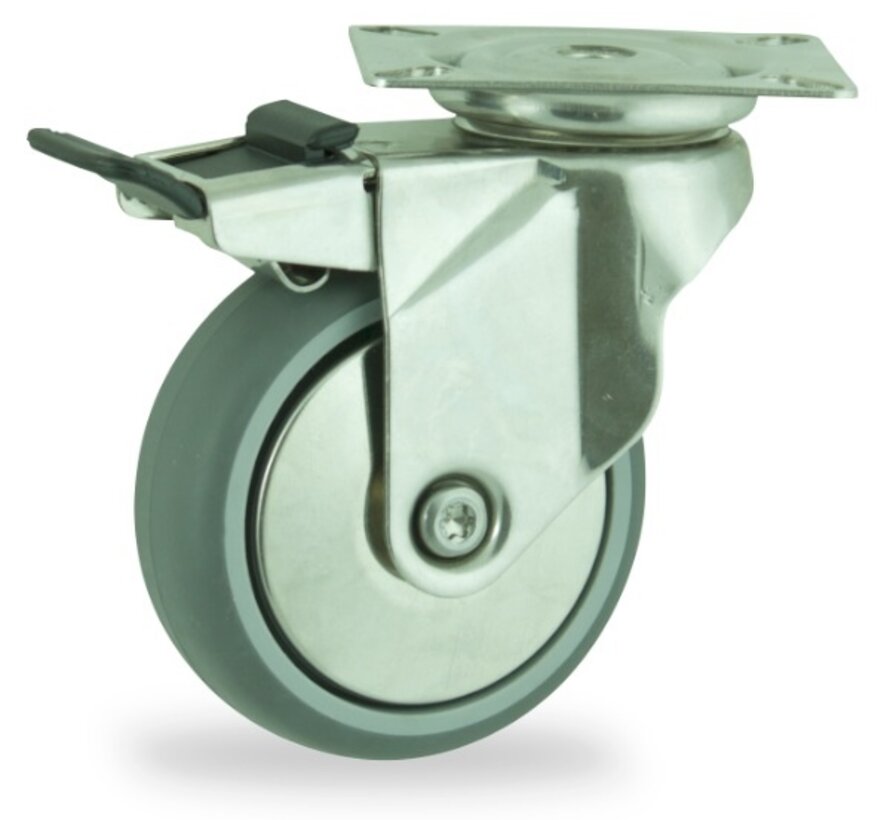

| Type | Institutional swivel castor with total brake |
|---|---|
| Wheel diameter | 75 mm |
| Wheel width | 24 mm |
| Tread | thermoplastic rubber (TPE) tread, 82 Shore A |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | ball bearing |
| Load capacity, dynamic | 60 kg |
| Load capacity, static | 70 kg |
| Top plate | 60x60 mm |
| Hole distance | 43x43 mm |
| Fixing hole diameter | 6.4 mm |
| Overall height | 101 mm |
| Offset | 30 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 0.36 kg |
| Temperature, continuous | -20 to +60 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Dust-proof and leaves no trail on the floor. Turns easily. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
