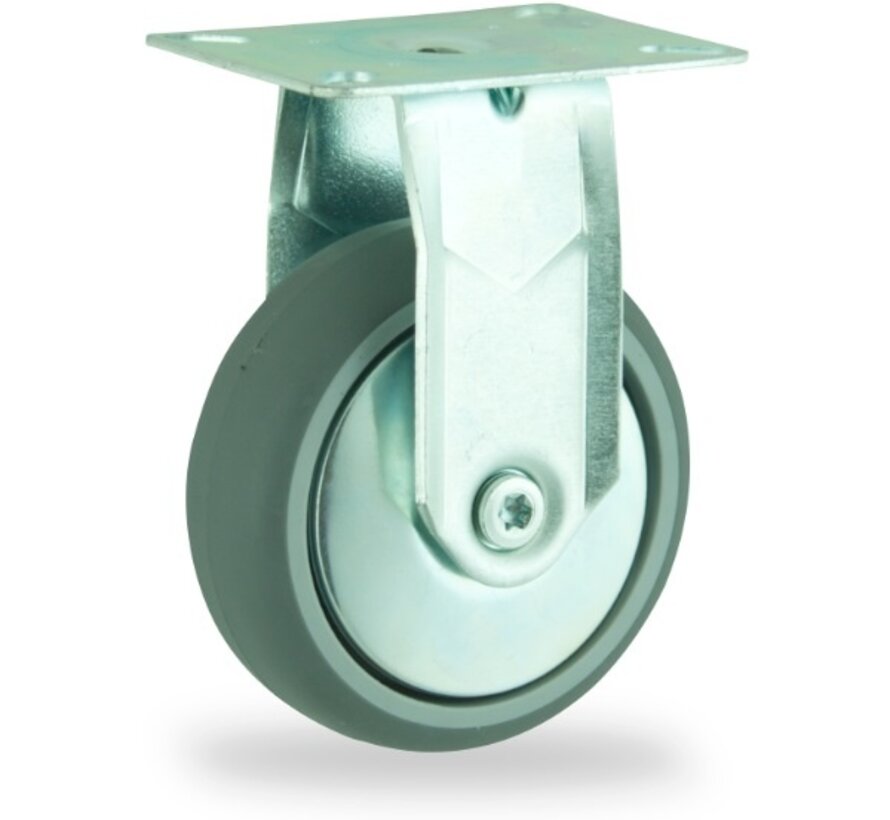

institutianal Fixed castor with an overall height of 101 mm
Wheel diameter x width: 75 x 24 mm
Top plate with 4 mounting holes of 6,4 mm, mounting hole distance 43x43 mm and top plate outer dimensions: 60x60 mm
Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 60 kg
Static 70 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Graceful moving Fixed castor:
✓ proof
✓ no marks on the floor
✓ rotation
institutianal Fixed castor + polyethylene tread Ø75 x W24mm for 60kg Prod ID: 44825
Product description
Product information
- Article code 2-7PS-15K
- SKU 44825
- EAN 3838461448256
Specifications
- Wheel diameter 75 mm
- Wheel width 24 mm
- Load capacity at 4 km/h 60 kg
- Static load capacity 70 kg
- Total height 101 mm
- Fitting Top plate
- Top plate size 60 x 60 mm
- Hole spacing 43 x 43 mm
- Bolt hole Ø 6.4 mm
- Bearing Ball bearing
- Tread material Polyethylene
- Tread hardness 82 Shore A
- Wheel centre Polypropylene
- Temperature range -20 to +60 °C
- Weight 0.25 kg
