standard Swivel castor + solid polyamide wheel Ø80 x W35mm for 150kg Prod ID: 34375

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

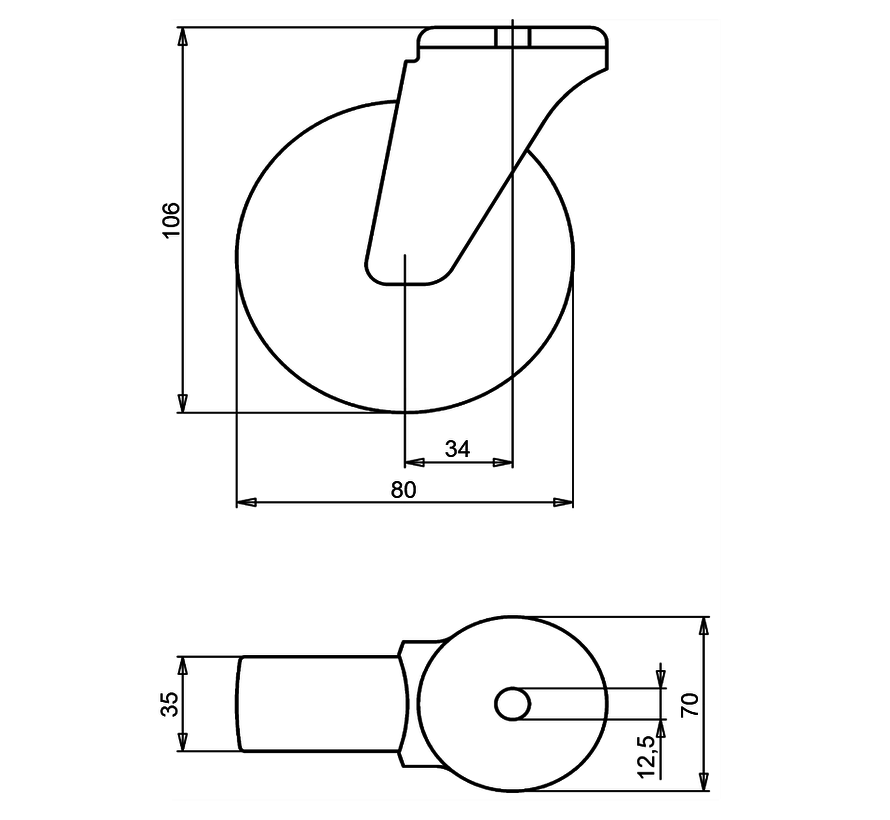

standard Swivel castor with an overall height of 106 mm
Wheel diameter x width: 80 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with roller bearing and solid polyamide wheel with hardness 70±5 Shore D.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Glide through the hall Swivel castor:
✓ chemical resistance
✓ load capacity and shock impact resistant
✓ high temperature shifts

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor + solid polyamide wheel Ø80 x W35mm for 150kg Prod ID: 34375

ID 34375: Castor overall height 106 mm | 4 mounting holes with distance #$% mm | Wheel with roller bearing and solid polyamide wheel with hardness 70±5 Shore D | Glide through the hall, good chemical resistance, high load capacity and shock impact resist
