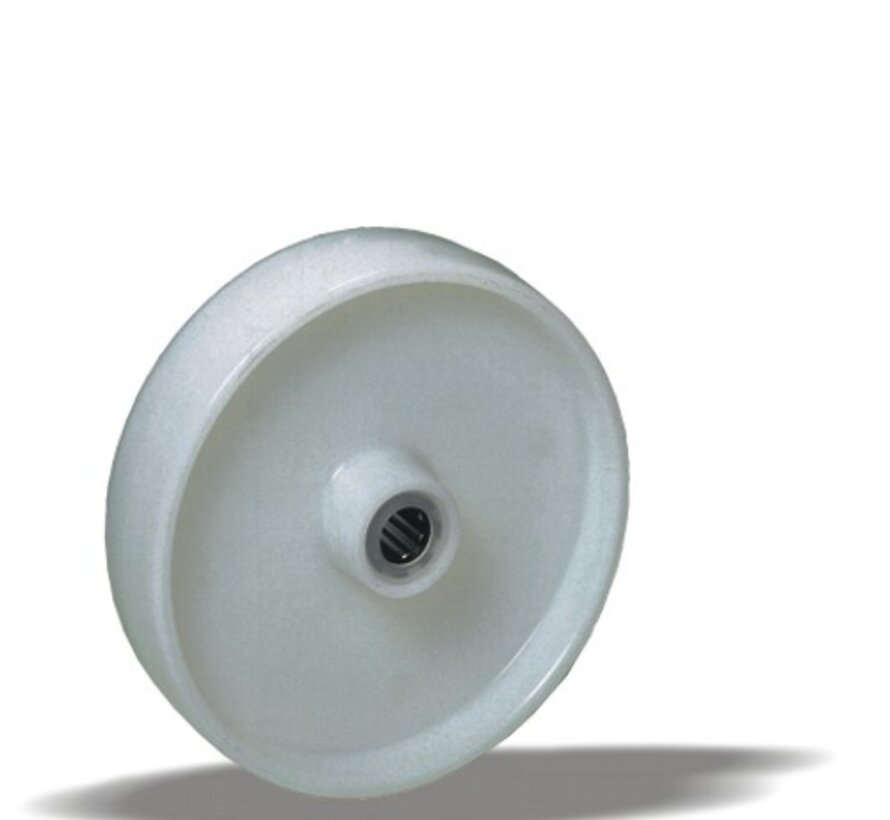

standard wheel + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 42463

Name: standard wheel + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 42463
Brand: LIV Systems
SKU: 42463

standard Wheel with ball bearing and solid polyamide wheel with hardness 70±5 Shore D
Wheel diameter x width: 100 x 35 mm
Axle hole: 8,5 mm
Hub length: 44 mm

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Glide through the hall wheel:
✓ chemical resistance
✓ load capacity and shock impact resistant
✓ high temperature shifts

LIV SYSTEMS standard wheel + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 42463

ID 42463:standard Wheel with ball bearing and solid polyamide wheel with hardness 70±5 Shore D | Axle hole: 8,5 mm | Hub length: 44 mm | Glide through the hall, good chemical resistance, high load capacity and shock impact resistant, for high temperature
