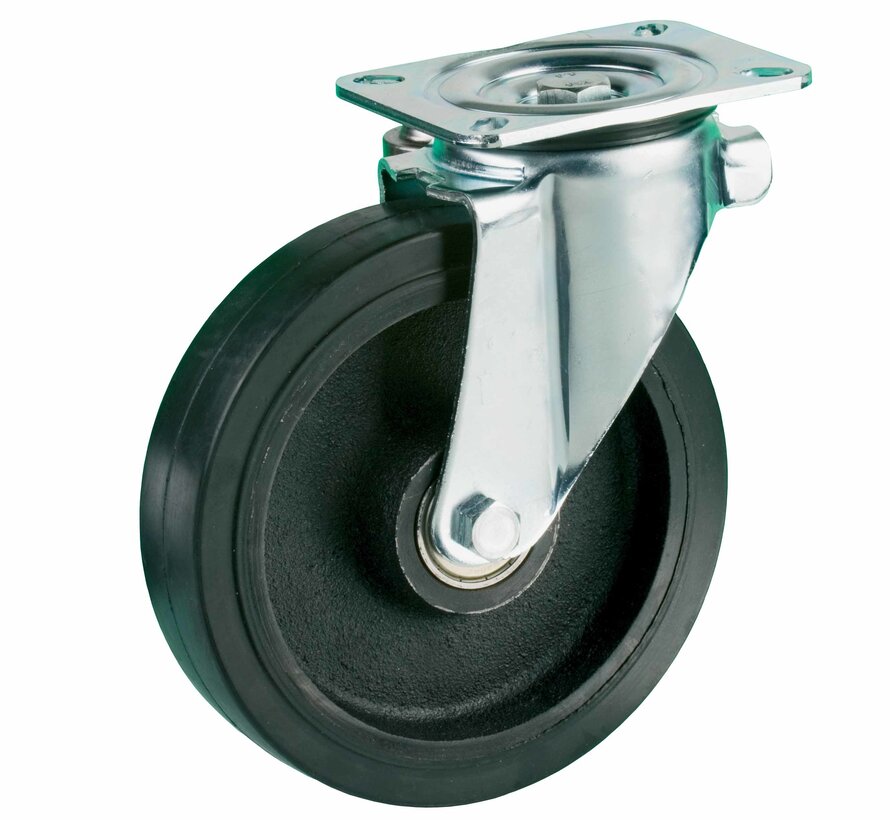

heavy duty Swivel castor + black rubber tyre Ø200 x W50mm for 600kg Prod ID: 42433

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Swivel castor with an overall height of 240 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and black rubber tyre with hardness 65 ° Shore A on cast iron.

Approved and tested load capacity
Dynamic 600 kg
Static 750 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Heavy floor convey Swivel castor:
✓ friendly
✓ surpassing obstacles
✓ loads smooth ride

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Swivel castor + black rubber tyre Ø200 x W50mm for 600kg Prod ID: 42433

ID 42433: Castor overall height 240 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and black rubber tyre with hardness 65 ° Shore A | Heavy floor convey, floor friendly, easily surpassing obstacles, weightly loads smooth ride

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
