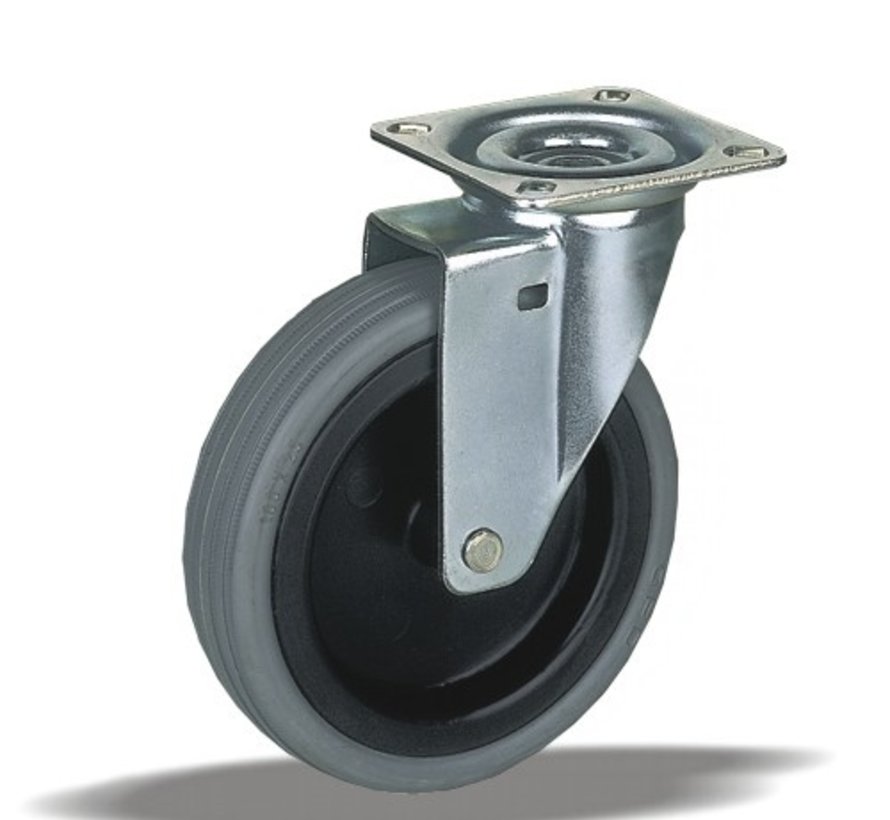

furniture Swivel castor + rubber tyre Ø75 x W25mm for 50kg Prod ID: 91866

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

furniture Swivel castor with an overall height of 96 mm
Wheel diameter x width: 75 x 25 mm
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46x46 mm and top plate outer dimensions: 60x60 mm
Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 50 kg
Static 60 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Silent move Swivel castor:
✓ friendly
✓ non intrusive
✓ base

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor + rubber tyre Ø75 x W25mm for 50kg Prod ID: 91866

ID 91866: Castor overall height 96 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A | Silent move, surface friendly, visually non intrusive, lightweight base
