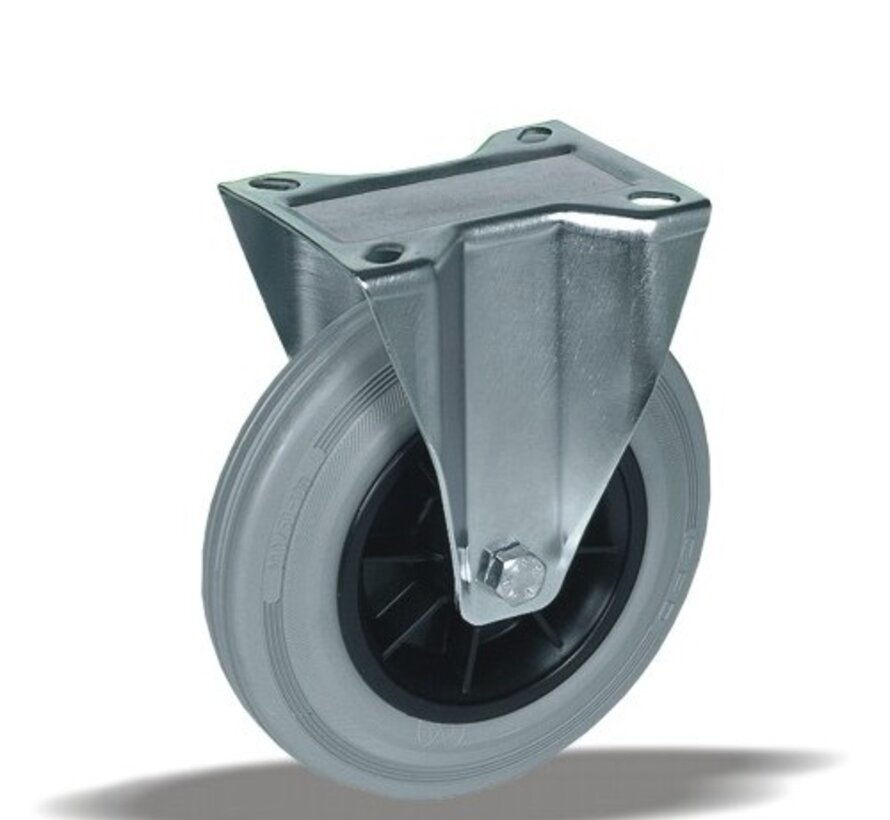

stainless steel Fixed castor with an overall height of 190 mm
Wheel diameter x width: 160 x 40 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with roller bearing and grey rubber tyre with hardness 83 ° shore A on polypropylene.
Approved and tested load capacity
Dynamic 180 kg
Static 220 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Floor floor turns Fixed castor:
✓ preservation
✓ and steam proof
✓ obstacle smooth pass
stainless steel Fixed castor + grey rubber tyre Ø160 x W40mm for 180kg Prod ID: 41843
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-955 ISO
- SKU 41843
- EAN 3838461418433
Specifications
