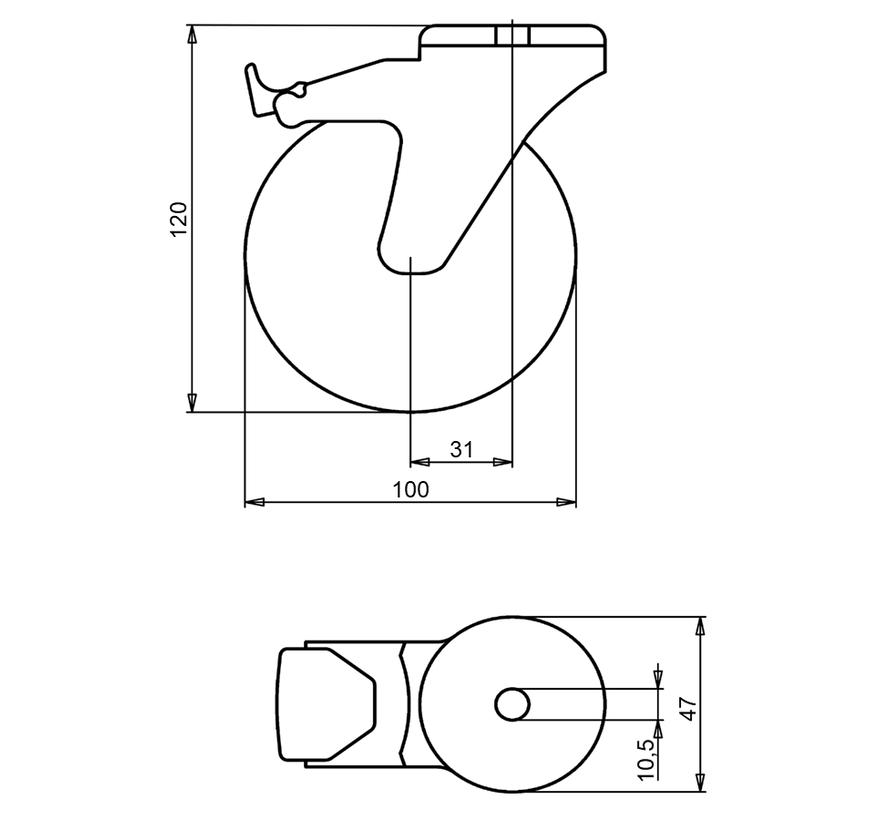

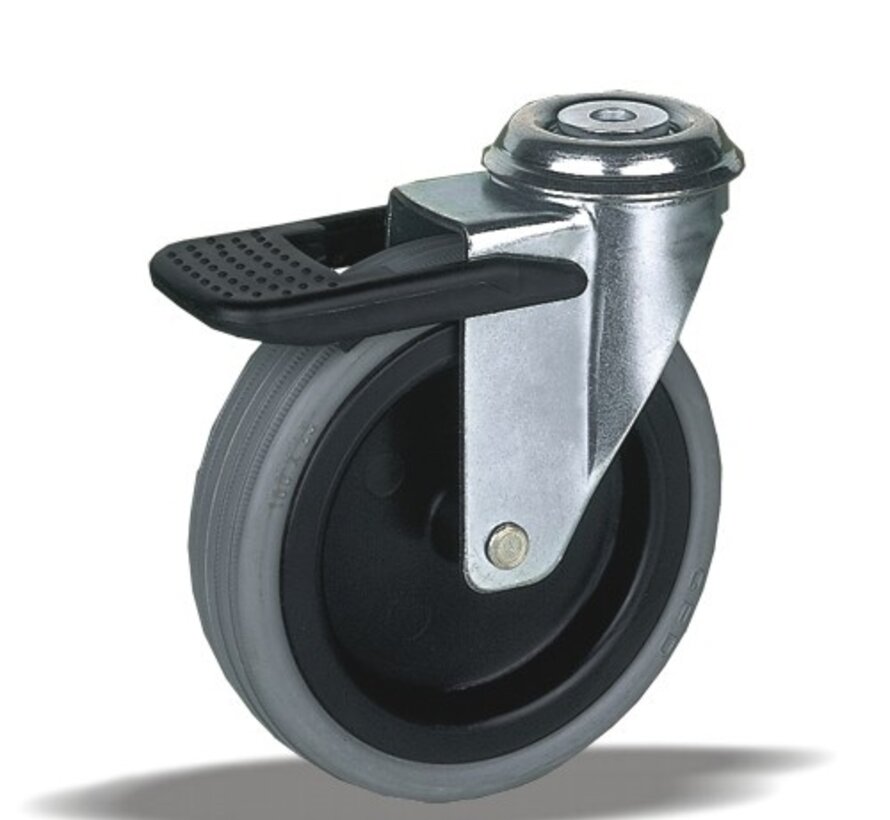

furniture Swivel castor with brake with an overall height of 120 mm
Wheel diameter x width: 100 x 25 mm
Top plate with 4 mounting holes of 10,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 47 mm
Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 60 kg
Static 70 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Silent move Swivel castor with brake:
✓ friendly
✓ non intrusive
✓ base
furniture Swivel castor with brake + rubber tyre Ø100 x W25mm for 60kg Prod ID: 39193
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-822 B10
- SKU 39193
- EAN 3838461391934
Specifications
