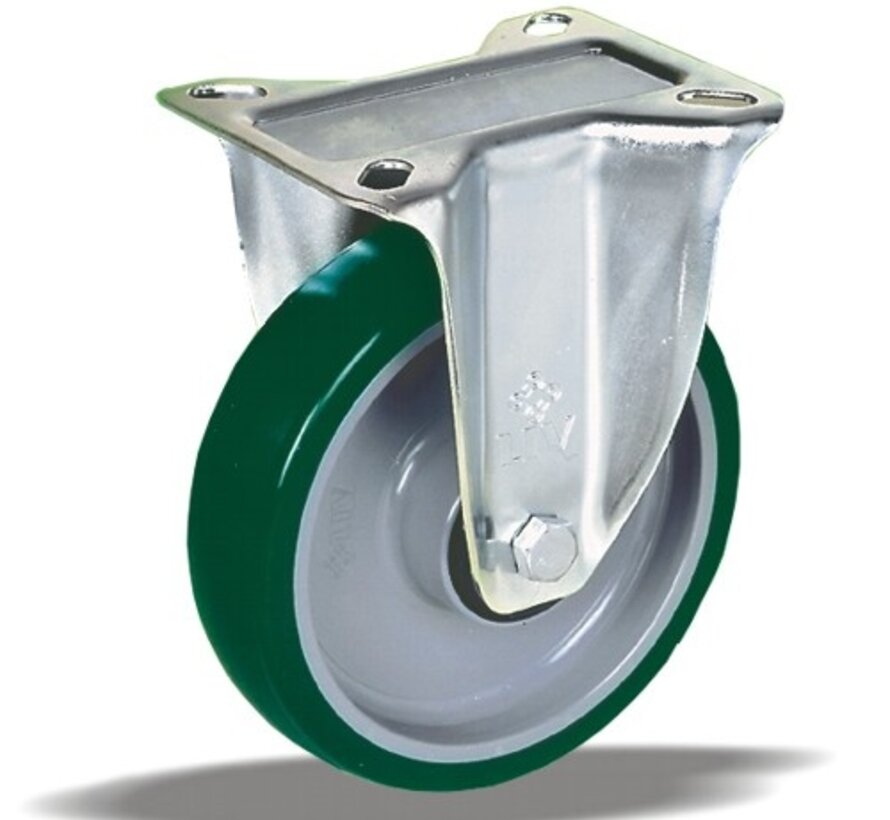

stainless steel Fixed castor + injection-moulded polyurethane tread Ø160 x W50mm for 300kg Prod ID: 41703

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

stainless steel Fixed castor with an overall height of 190 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with roller bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C

Advantages of this No trail highway drive Fixed castor:
✓ deformation if rarely moved
✓ range of temperatures
✓ resistant

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Fixed castor + injection-moulded polyurethane tread Ø160 x W50mm for 300kg Prod ID: 41703

ID 41703: Castor overall height 190 mm | 4 mounting holes with distance 105x80 mm | Wheel with roller bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A | No trail highway drive, low deformation if rarely moved, wide range of temp
