stainless steel Swivel castor with brake + grey rubber tyre Ø100 x W32mm for 80kg Prod ID: 41554

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

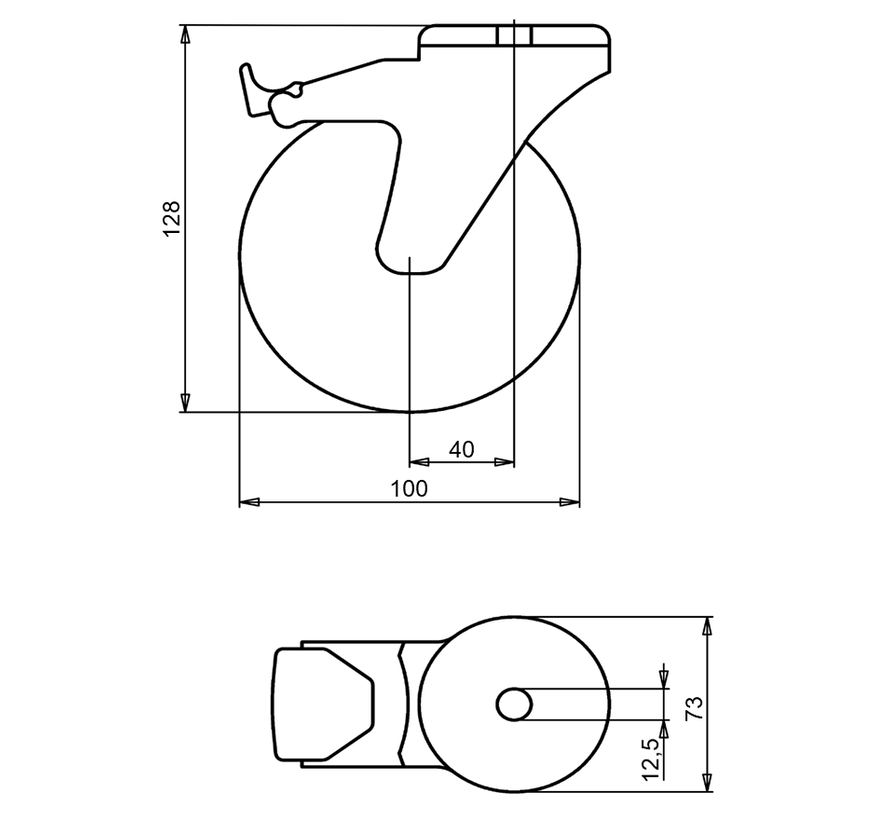

stainless steel Swivel castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 32 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 73 mm
Wheel with roller bearing and grey rubber tyre with hardness 83 ° shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 80 kg
Static 100 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Floor floor turns Swivel castor with brake:
✓ preservation
✓ and steam proof
✓ obstacle smooth pass

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor with brake + grey rubber tyre Ø100 x W32mm for 80kg Prod ID: 41554

ID 41554: Castor overall height 128 mm | 4 mounting holes with distance #$% mm | Wheel with roller bearing and grey rubber tyre with hardness 83 ° shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Floor floor t
