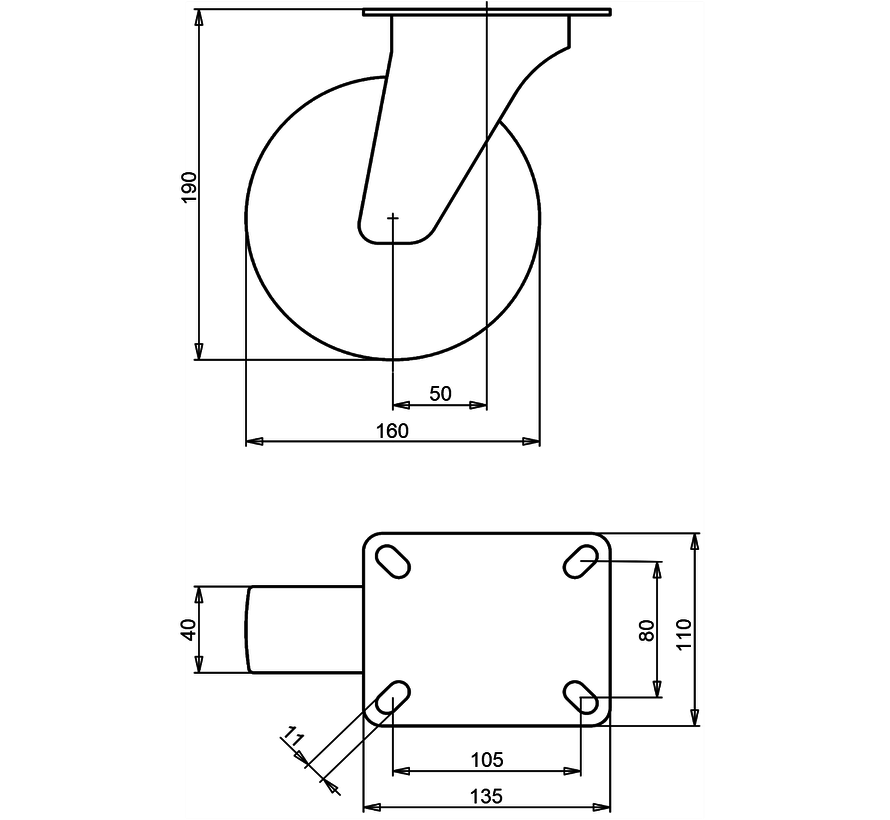

standard Swivel transport castor with an overall height of 190 mm
Wheel diameter x width: 160 x 40 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free.
Approved and tested load capacity
Dynamic 180 kg
Static 220 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Comfortable drive Swivel transport castor:
✓ to manoeuvre
✓ performance on uneven floor or obstacles
✓ and strong wheel systems
standard Swivel transport castor + black rubber tyre Ø160 x W40mm for 180kg Prod ID: 64156
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-640 ISO
- SKU 64156
- EAN 3838461641565
Specifications
