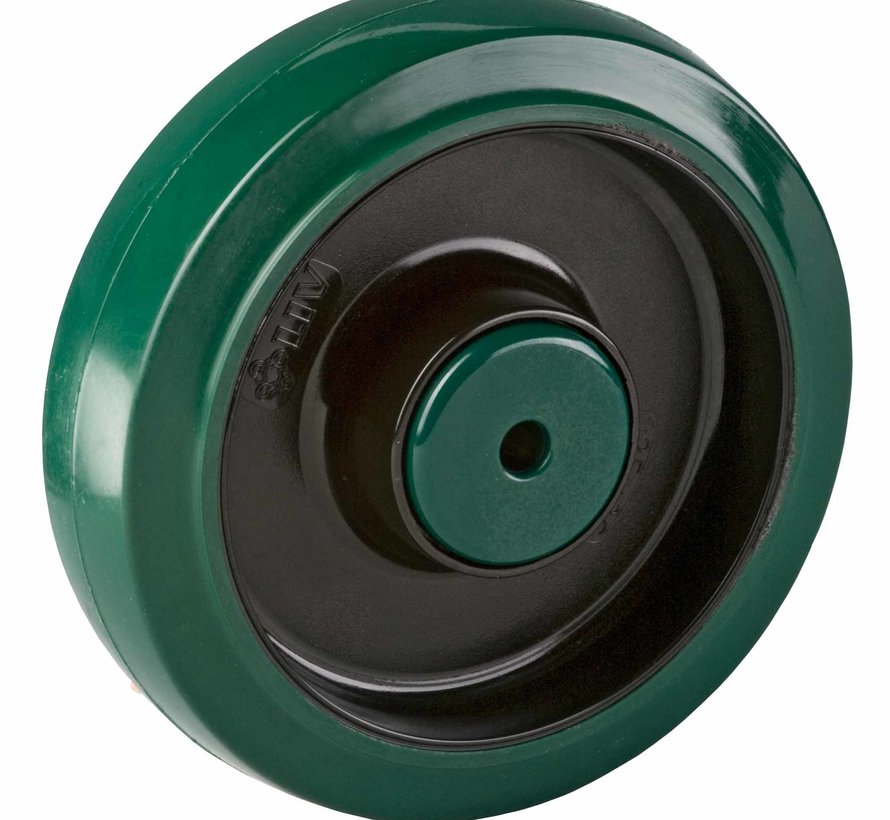

standard wheel + elastic rubber tyre Ø125 x W35mm for 200kg Prod ID: 39854

Product description

standard Wheel with plain bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide
Wheel diameter x width: 125 x 35 mm
Axle hole: 15 mm
Hub length: 44 mm

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C



Advantages of this Soft floor wheel wheel:
✓ force to start
✓ ride
✓ to surface when stationed

Deep draw press forming and surface treatment of OE steel parts is our expertise

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard wheel + elastic rubber tyre Ø125 x W35mm for 200kg Prod ID: 39854

ID 39854:standard Wheel with plain bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide | Axle hole: 15 mm | Hub length: 44 mm | Soft floor wheel, low force to start, smooth ride, gentle to surface when stationed
