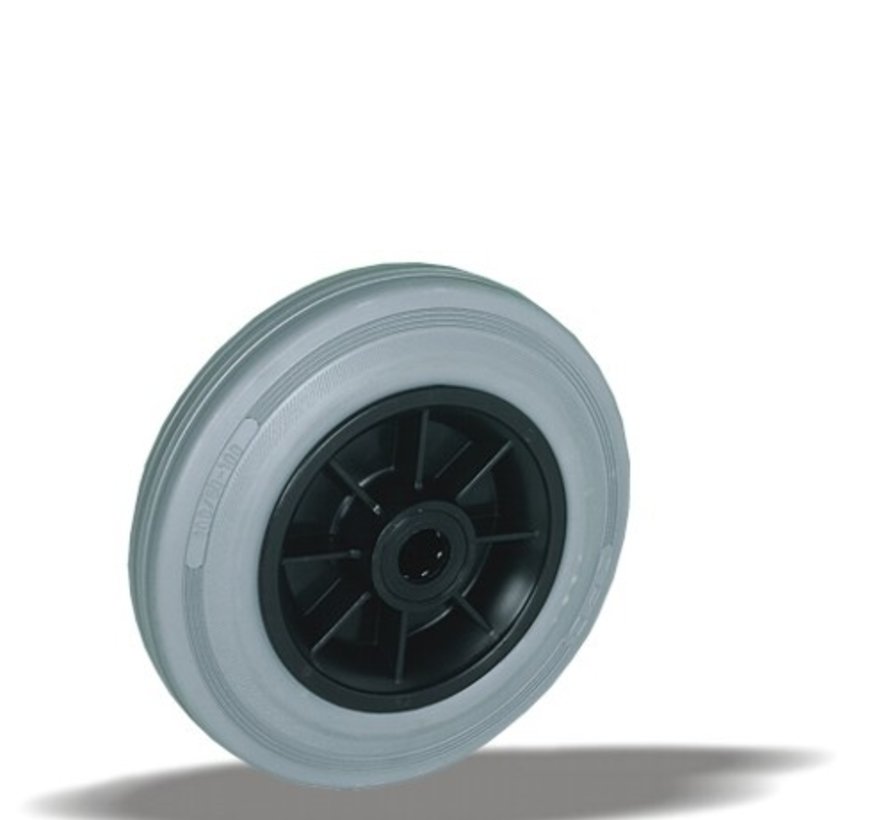

| Type | Wheel |
|---|---|
| Wheel diameter | 180 mm |
| Wheel width | 50 mm |
| Tread | grey rubber tread, 83 Shore A |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | plain bearing |
| Load capacity, dynamic | 200 kg |
| Load capacity, static | 250 kg |
| Axle hole | 20 mm |
| Weight | 1.15 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
The grey rubber does not leave marks on the floor. The tyre damps vibration and noise, and the wheel works indoors and outdoors. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
