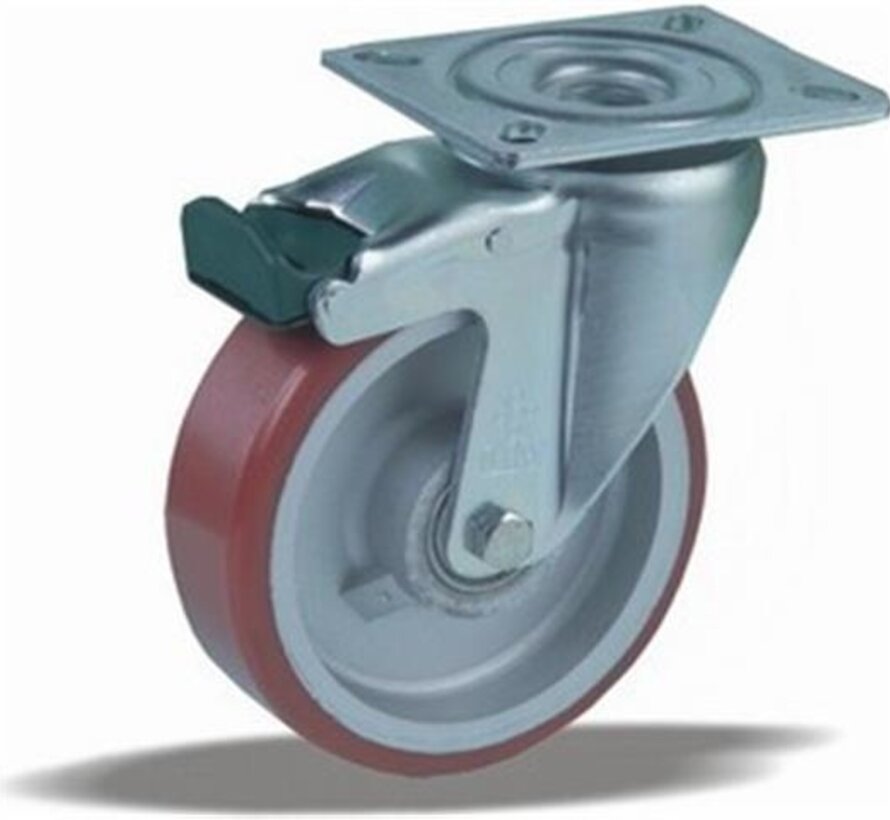

| Type | Swivel castor with total brake |
|---|---|
| Wheel diameter | 80 mm |
| Wheel width | 40 mm |
| Tread | polyurethane tread, 92 Shore A |
| Tread colour | orange/red/brown |
| Wheel centre | aluminium |
| Bearing | ball bearing |
| Load capacity, dynamic | 200 kg |
| Load capacity, static | 260 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Fixing hole diameter | 9 mm |
| Overall height | 109 mm |
| Offset | 40 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 1.3 kg |
| Temperature, continuous | -25 to +55 °C |
| Temperature, short exposure (max. 10 min) | -40 to +55 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Low own weight and chemical resistance. Heavy loads move with little effort. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
