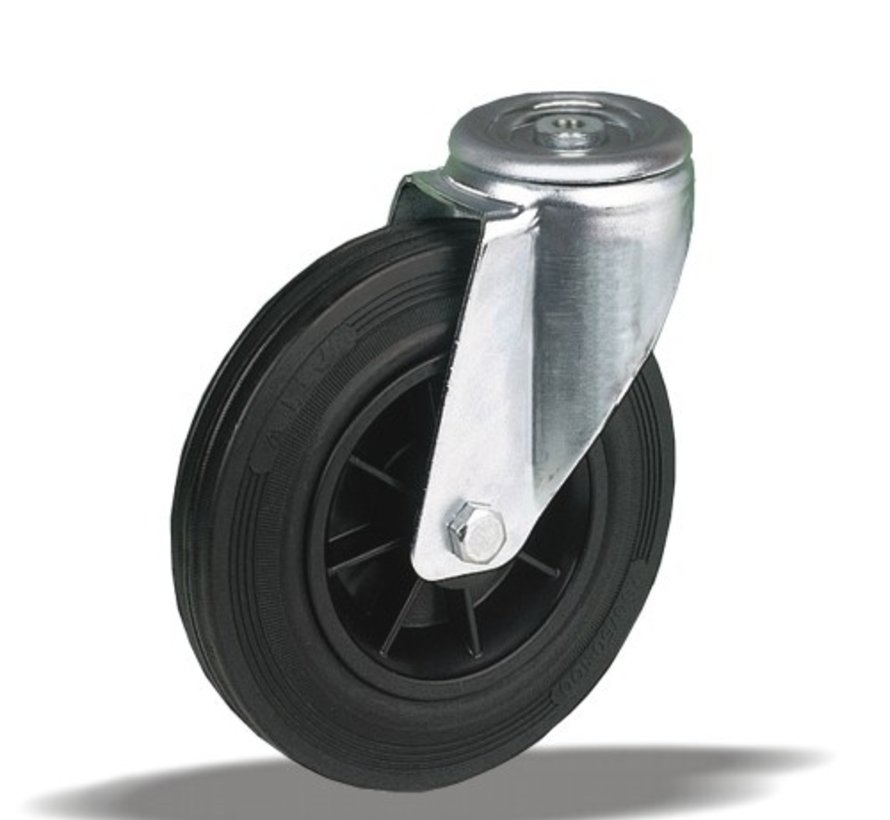

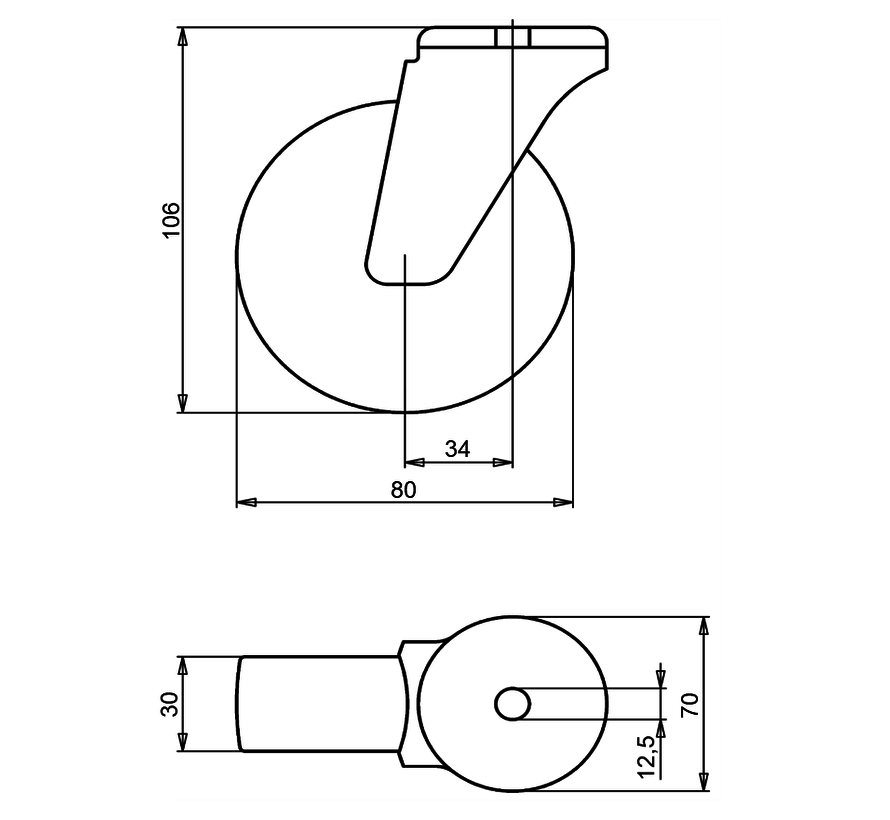

standard Swivel transport castor with an overall height of 106 mm
Wheel diameter x width: 80 x 30 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 65 kg
Static 80 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Smooth drive wheel Swivel transport castor:
✓ wet floor
✓ reduces the transmission of both vibration and noise
✓ with low obstacles
standard Swivel transport castor + black rubber tyre Ø80 x W30mm for 65kg Prod ID: 34123
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-965 L12
- SKU 34123
- EAN 3838461341236
Specifications
