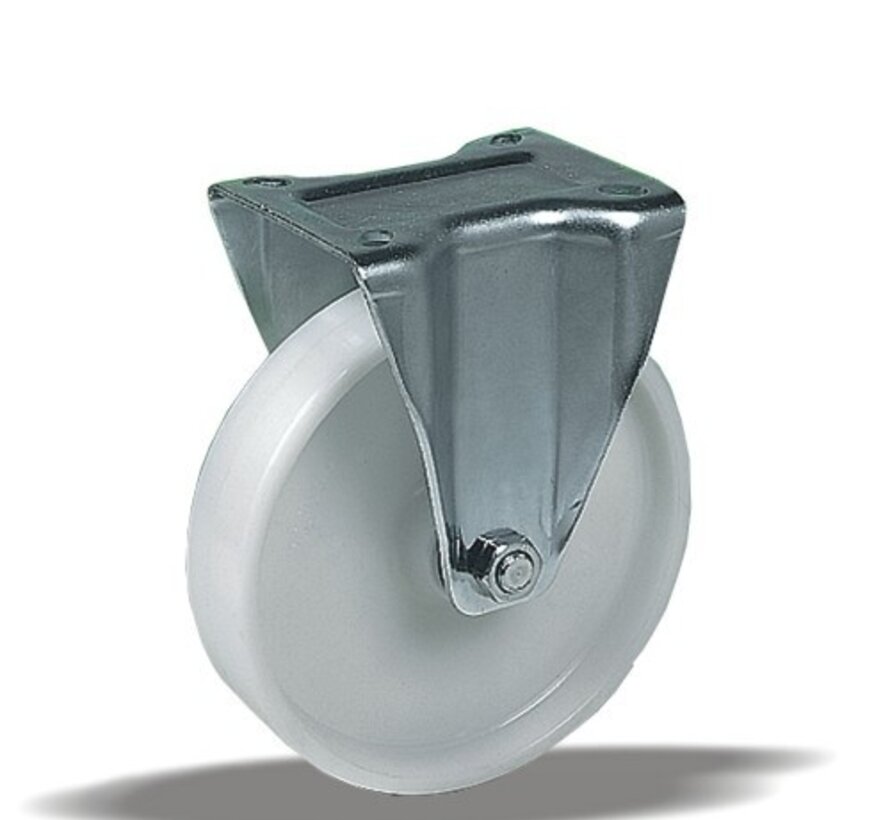

Stainless steel fixed castor 80 mm, polyamide, plain bearing, plate 105x85 mm, 150 kg, Art. 2-675 ISO

Stainless steel fixed castor, 80 mm wheel diameter, solid polyamide wheel, running on plain bearing. Rated load is 150 kg dynamic, 180 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeStainless steel fixed castor
Wheel diameter80 mm
Wheel width35 mm
Treadsolid polyamide wheel, 70±5 Shore D
Wheel centrepolyamide
Bearingplain bearing
Load capacity, dynamic150 kg
Load capacity, static180 kg
Top plate105x85 mm
Hole distance80x60 mm
Fixing hole diameter9 mm
Overall height106 mm
Weight0.49 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C
Tread hardness70 Shore D

Properties and use

The castor can be washed often and suits hot and wet conditions. Stainless steel does not rust, so it keeps its finish. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
