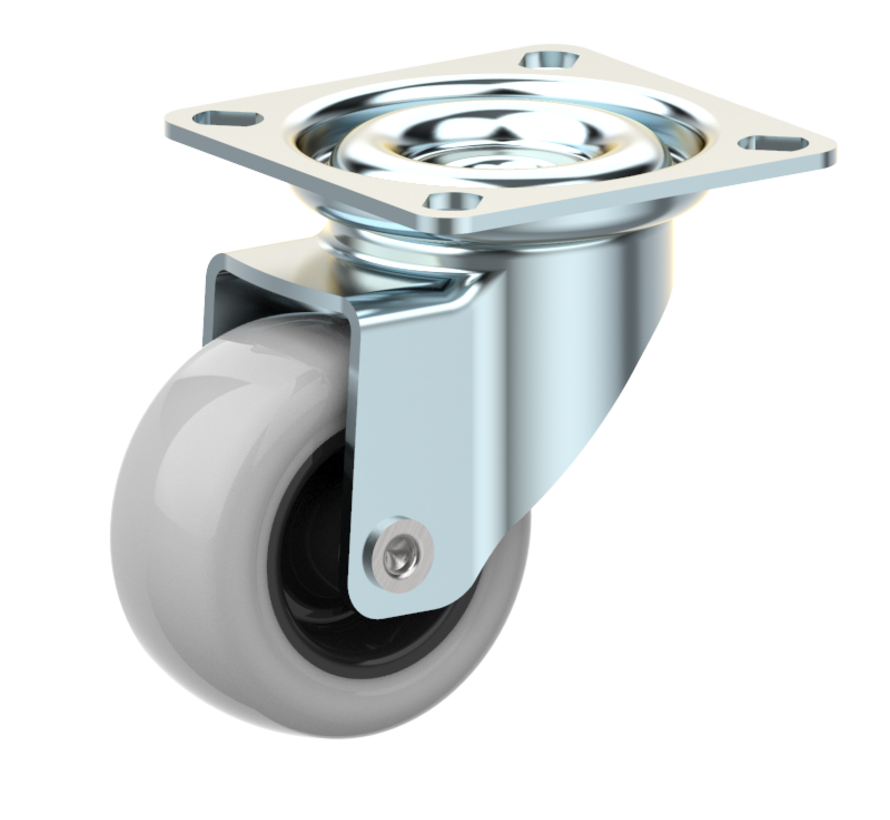

furniture Swivel castor + thermoplastic rubber Ø50 x W25mm for 70kg Prod ID: 33983

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

furniture Swivel castor with an overall height of 68 mm
Wheel diameter x width: 50 x 25 mm
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46x46 mm and top plate outer dimensions: 60x60 mm
Wheel with plain bearing and thermoplastic rubber with hardness 92 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 70 kg
Static 80 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Invisible foundation Swivel castor:
✓ deformation if rarely moved
✓ markings on the floor
✓ to turn

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor + thermoplastic rubber Ø50 x W25mm for 70kg Prod ID: 33983

ID 33983: Castor overall height 68 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and thermoplastic rubber with hardness 92 ° Shore A | Invisible foundation, low deformation if rarely moved, no markings on the floor, easy to turn
