furniture Swivel castor with brake + solid polyamide wheel Ø50 x W17,5mm for 80kg Prod ID: 39314

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

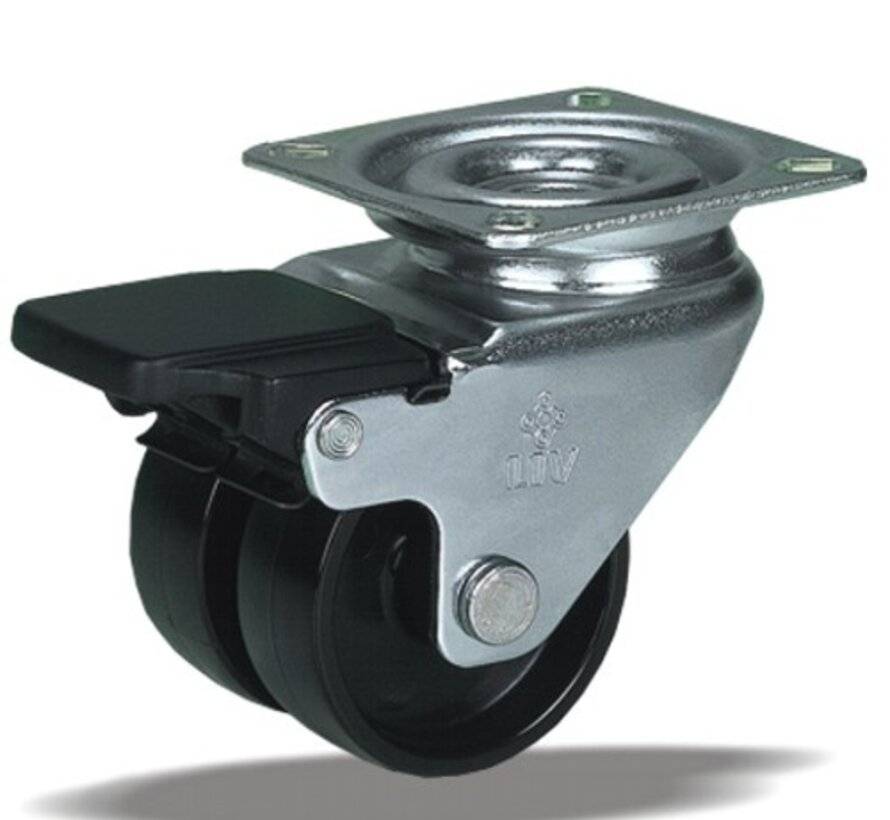

Furniture Swivel castor with brake with an overall height of 72 mm.
Wheel diameter x width: 50 x 17,5 mm.
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46 x 46 mm and top plate outer dimensions: 60 x 60 mm.
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 ° Shore D.
The double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity:
Dynamic: 80 kg
Static: 100 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of furniture Swivel castor:
✓ attractive design
✓ rotating on spot

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + solid polyamide wheel Ø50 x W17,5mm for 80kg Prod ID: 39314

ID 39314: Castor overall height 72 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and solid polyamide wheel with hardness 70±5 ° Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | Essent
