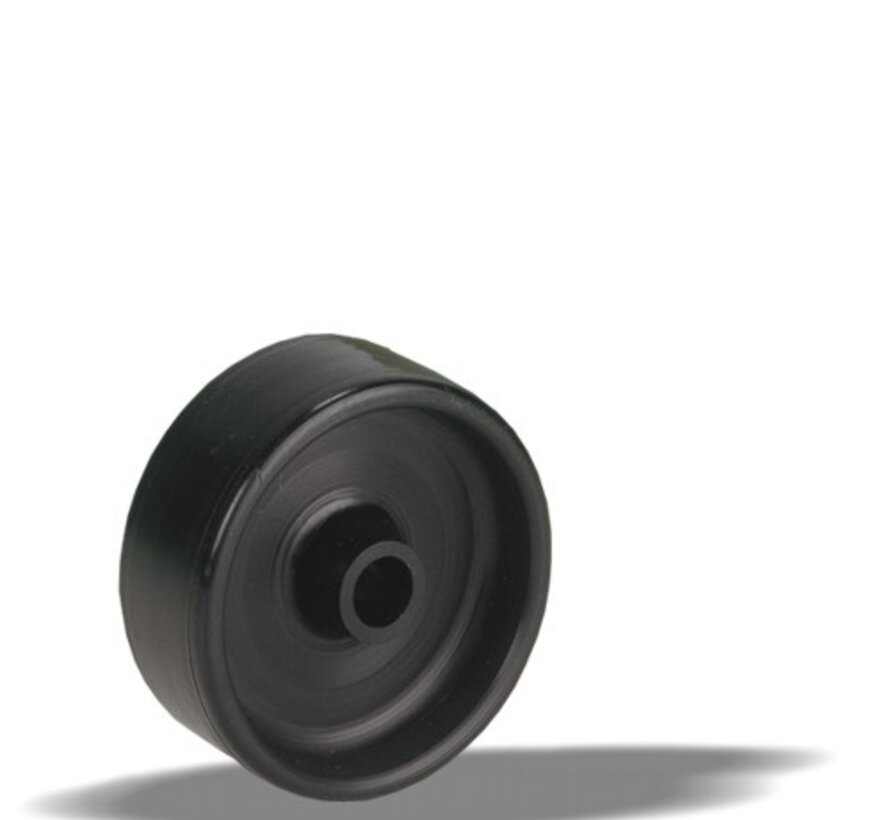

furniture wheel + solid polyamide wheel Ø50 x W17,5mm for 60kg Prod ID: 33674

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

Furniture Wheel with plain bearing and solid polyamide wheel with hardness 70±5 ° Shore D.
Wheel diameter x width: 50 x 17,5 mm
Axle hole: 8 mm
Hub length: 22 mm

Approved and tested load capacity:
Dynamic: 60 kg
Static: 70 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of furniture wheel:
✓ attractive design
✓ rotating on spot

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture wheel + solid polyamide wheel Ø50 x W17,5mm for 60kg Prod ID: 33674

ID 33674:furniture Wheel with plain bearing and solid polyamide wheel with hardness 70±5 ° Shore D | Axle hole: 8 mm | Hub length: 22 mm | Essential relocation, visually attractive design, economical, easy rotating on spot
