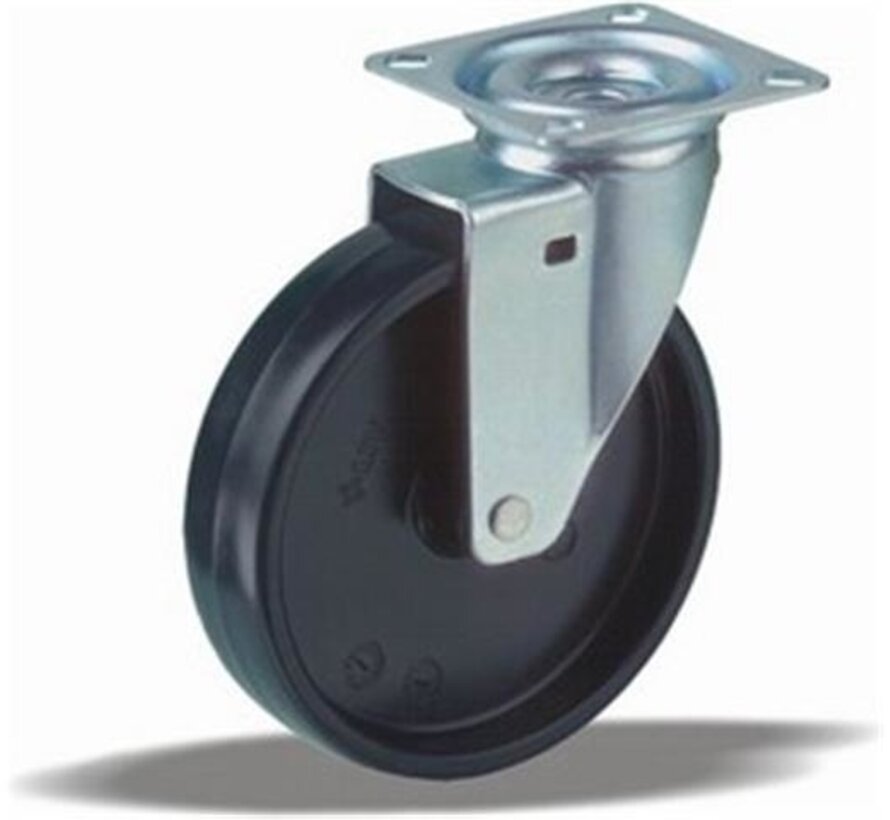

furniture Swivel castor + solid polypropylene wheel Ø50 x W25mm for 50kg Prod ID: 32553

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

furniture Swivel castor with an overall height of 68 mm
Wheel diameter x width: 50 x 25 mm
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46x46 mm and top plate outer dimensions: 60x60 mm
Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 ° Shore D.

Approved and tested load capacity
Dynamic 50 kg
Static 60 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C

Advantages of this Essential relocation Swivel castor:
✓ attractive design
✓
✓ rotating on spot

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor + solid polypropylene wheel Ø50 x W25mm for 50kg Prod ID: 32553

ID 32553: Castor overall height 68 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 ° Shore D | Essential relocation, visually attractive design, economical, easy rotating on spot

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
