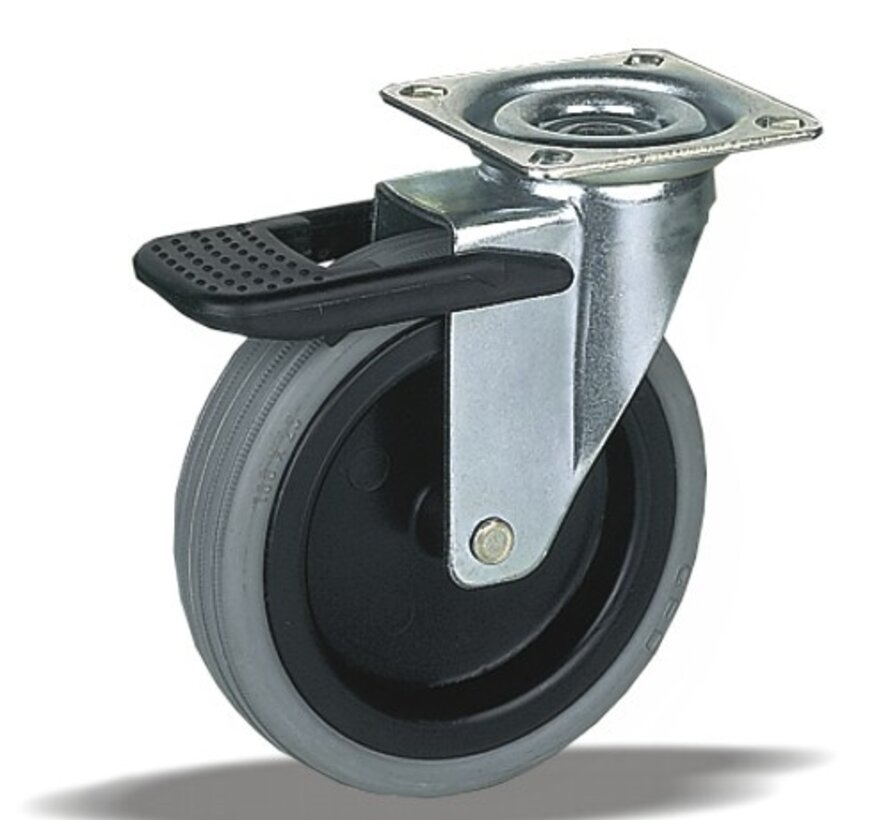

furniture Swivel castor with brake with an overall height of 96 mm
Wheel diameter x width: 75 x 25 mm
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46x46 mm and top plate outer dimensions: 60x60 mm
Wheel with plain bearing and polyethylene tread with hardness 92 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 75 kg
Static 90 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Invisible foundation Swivel castor with brake:
✓ deformation if rarely moved
✓ markings on the floor
✓ to turn
furniture Swivel castor with brake + polyethylene tread Ø75 x W25mm for 75kg Prod ID: 32333
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-811 F
- SKU 32333
- EAN 3838461323331
Specifications
